Code:3EL105613V2LXL
Barcode:8595247303202
Brand:AXI

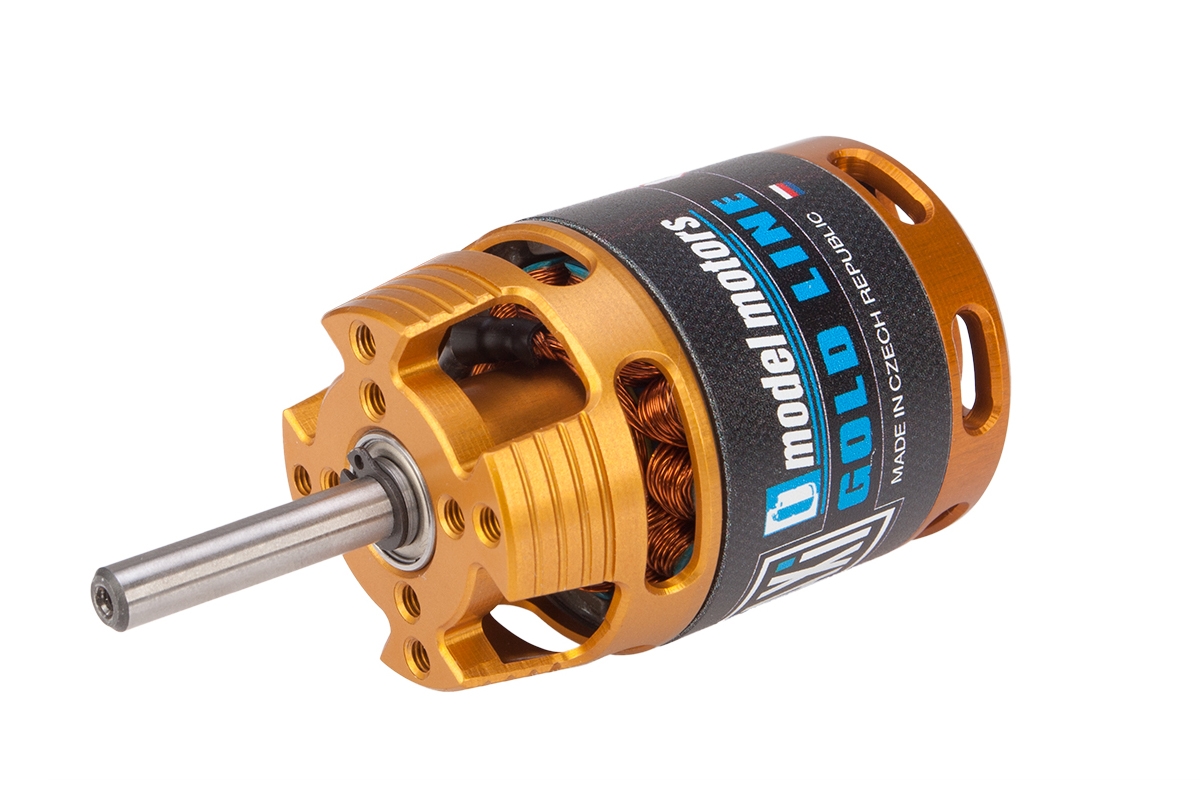

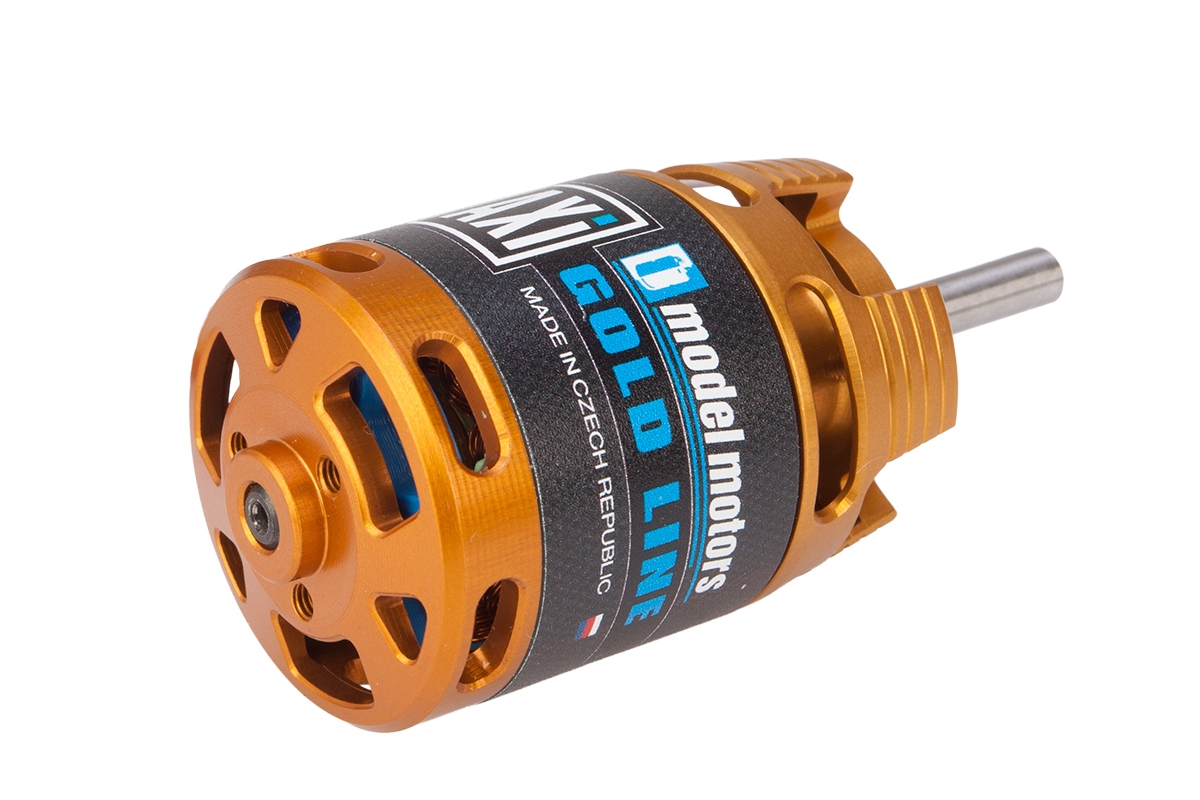

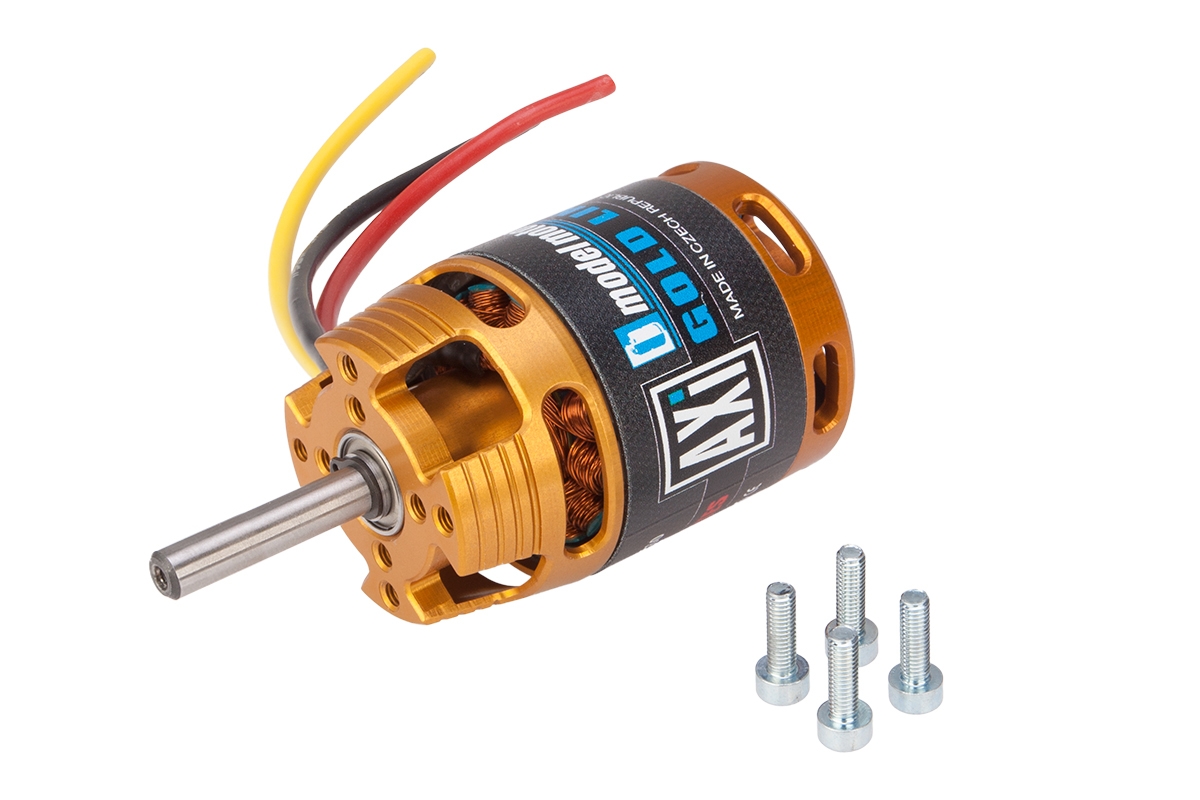

AXI 2826/12 V2 LONG XL brushless
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 3 - 5 ; RPM/V [RPM/min/V]: 990 ; Nr. of turns: 12 ; Internal resistance [mOhm]: 59 ; No load current [A]: 1.7 ; max. effenciency [%]: 85 ; Max. efficiency current (η>76%) [A]: 15 - 25 ; Max. peak current (60 s) [A]: 38 ; Max. power [W]: 650 ; Diameter [mm]: 35 ; Lenght [mm]: 52 ; Shaft diameter [mm]: 5 ; Weight [g]: 165 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 40 - 60 ; Sailplane up to Weight [g]: 2400
| Powering LiXX cells | 3 - 5 |
| RPM/V [ot./min/V] | 990 |
| Turn count | 12 |
| Internal resistance [mOhm] | 59 |
| Open-circuit current [A] | 1.7 |
| Max. efficiency [%] | 85 |
| Max. efficiency current (η>76%) [A] | 15 - 25 |
| Max. peak current (60 s) [A] | 38 |
| Max. power [W] | 650 |

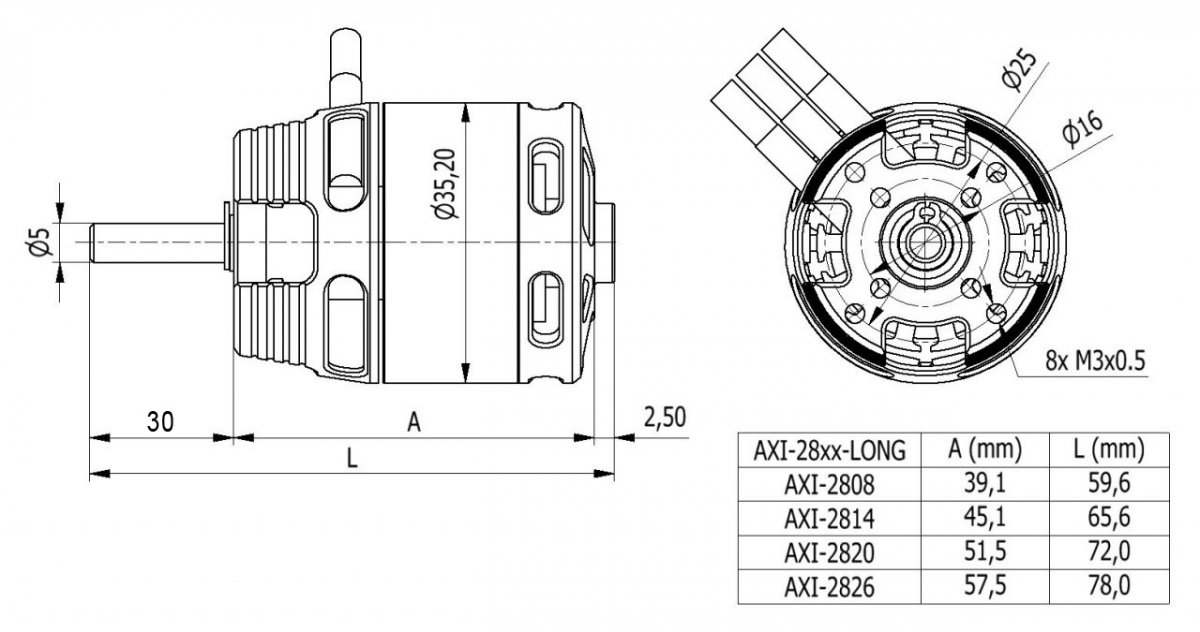

| Diameter [mm] | 35 |
| Length [mm] | 52 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 165 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 40 - 60 |
| Weight of glider (up-to) [g] | 2400 |
Accessories (2)
