Code:3EL105706
Barcode:8595247303271
Brand:AXI

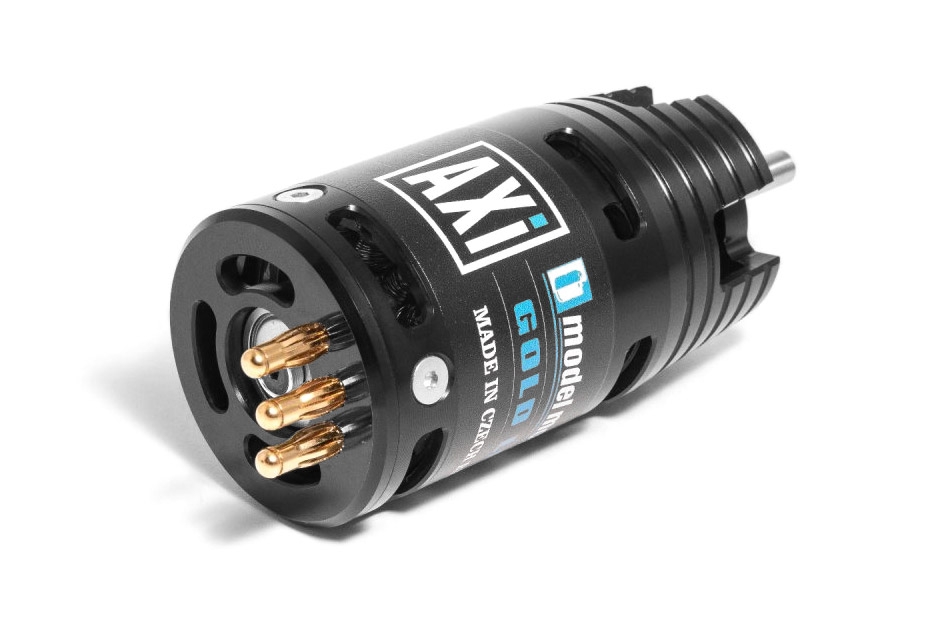

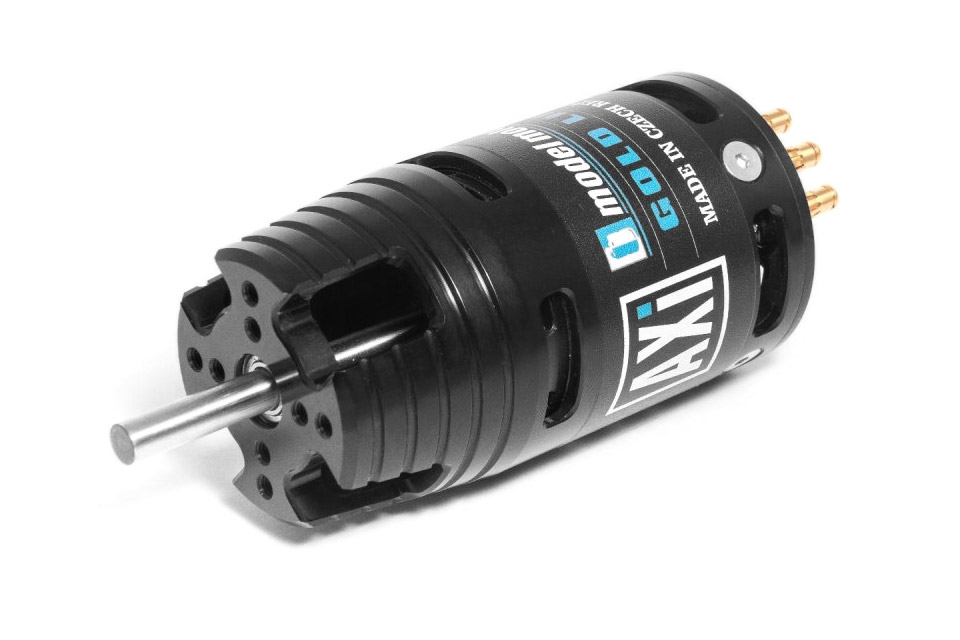

AXI 2826/12 Cyclone KV760
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 3 - 4 ; RPM/V [RPM/min/V]: 760 ; Nr. of turns: 12 ; Internal resistance [mOhm]: 62 ; No load current [A]: 1.2 ; max. effenciency [%]: 86 ; Max. efficiency current (η>78%) [A]: 15 - 25 ; Max. peak current (60 s) [A]: 40 ; Max. power [W]: 665 ; Diameter [mm]: 40 ; Lenght [mm]: 75 ; Shaft diameter [mm]: 5 ; Weight [g]: 230 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 45 - 60 ; Sailplane up to Weight [g]: 3000
| Powering LiXX cells | 3 - 4 |
| RPM/V [ot./min/V] | 760 |
| Turn count | 12 |
| Internal resistance [mOhm] | 62 |
| Open-circuit current [A] | 1.2 |
| Max. efficiency [%] | 86 |
| Max. efficiency current (η>78%) [A] | 15 - 25 |
| Max. peak current (60 s) [A] | 40 |
| Max. power [W] | 665 |

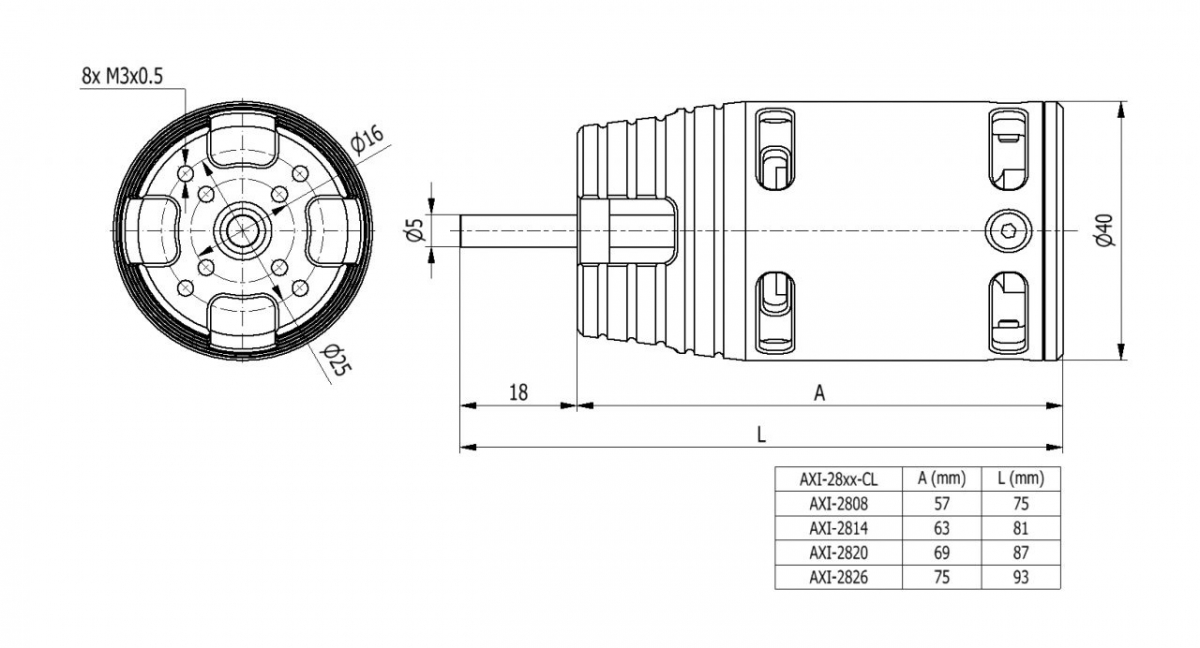

| Diameter [mm] | 40 |
| Length [mm] | 75 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 230 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 45 - 60 |
| Weight of glider (up-to) [g] | 3000 |
Accessories (1)
