Code:3EL105612V2
Barcode:8595247302304
Brand:AXI

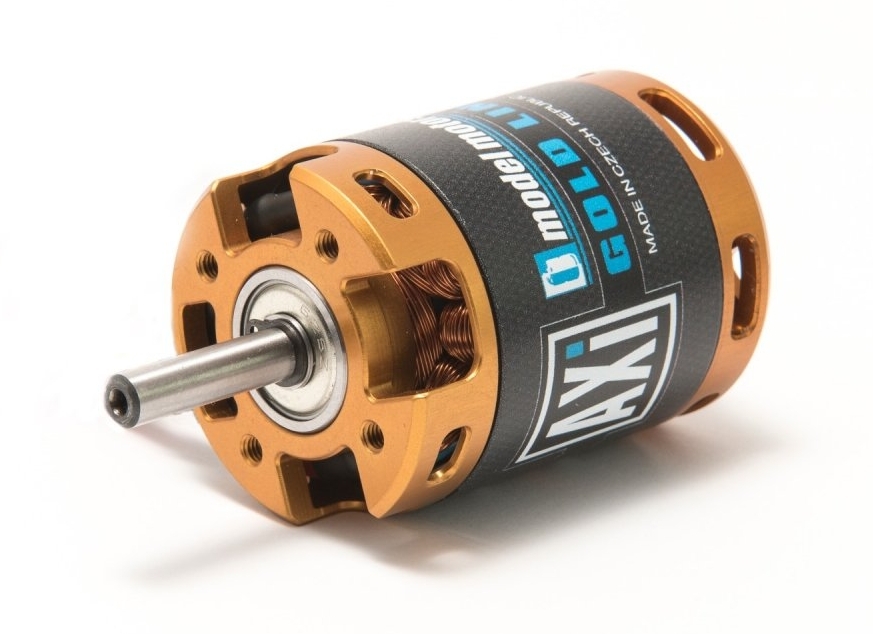

AXI 2826/10 V2 brushless
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 3 - 5 ; RPM/V [RPM/min/V]: 920 ; Nr. of turns: 10 ; Internal resistance [mOhm]: 42 ; No load current [A]: 1.7 ; max. effenciency [%]: 86 ; Max. efficiency current (η>78%) [A]: 20 - 30 ; Max. peak current (60 s) [A]: 43 ; Max. power [W]: 740 ; Diameter [mm]: 35 ; Lenght [mm]: 52 ; Shaft diameter [mm]: 5 ; Weight [g]: 177 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 50 - 70 ; Sailplane up to Weight [g]: 3000 ; Trainer up to Weight [g]: 3000 ; Acrobat up to Weight [g]: 2600 ; 3d up to Weight [g]: 1500
| Powering LiXX cells | 3 - 5 |
| RPM/V [ot./min/V] | 920 |
| Turn count | 10 |
| Internal resistance [mOhm] | 42 |
| Open-circuit current [A] | 1.7 |
| Max. efficiency [%] | 86 |
| Max. efficiency current (η>78%) [A] | 20 - 30 |
| Max. peak current (60 s) [A] | 43 |
| Max. power [W] | 740 |
| Diameter [mm] | 35 |
| Length [mm] | 52 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 177 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 50 - 70 |
| Weight of glider (up-to) [g] | 3000 |
| Weight of trainer (up-to) [g] | 3000 |
| Weight of acrobat (up-to) [g] | 2600 |
| Weight of 3D (up-to) [g] | 1500 |

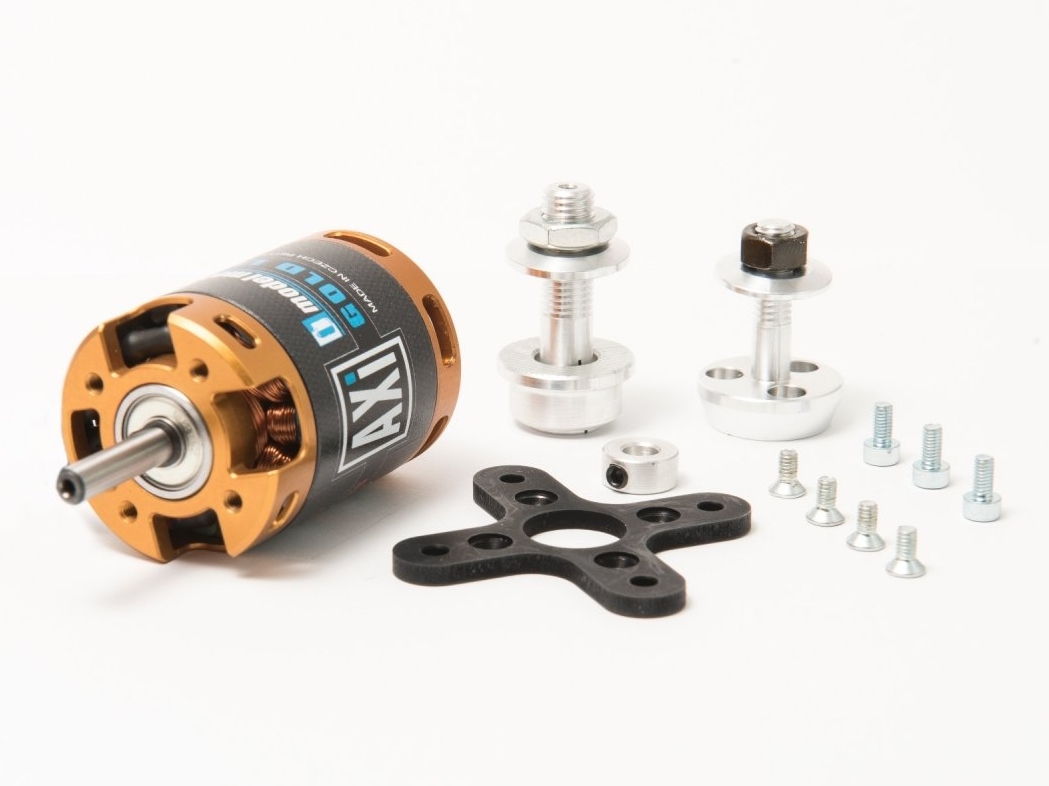

Accessories (2)
Spare parts (1)
