Code:3EL10528V2L
Barcode:8595247302397
Brand:AXI

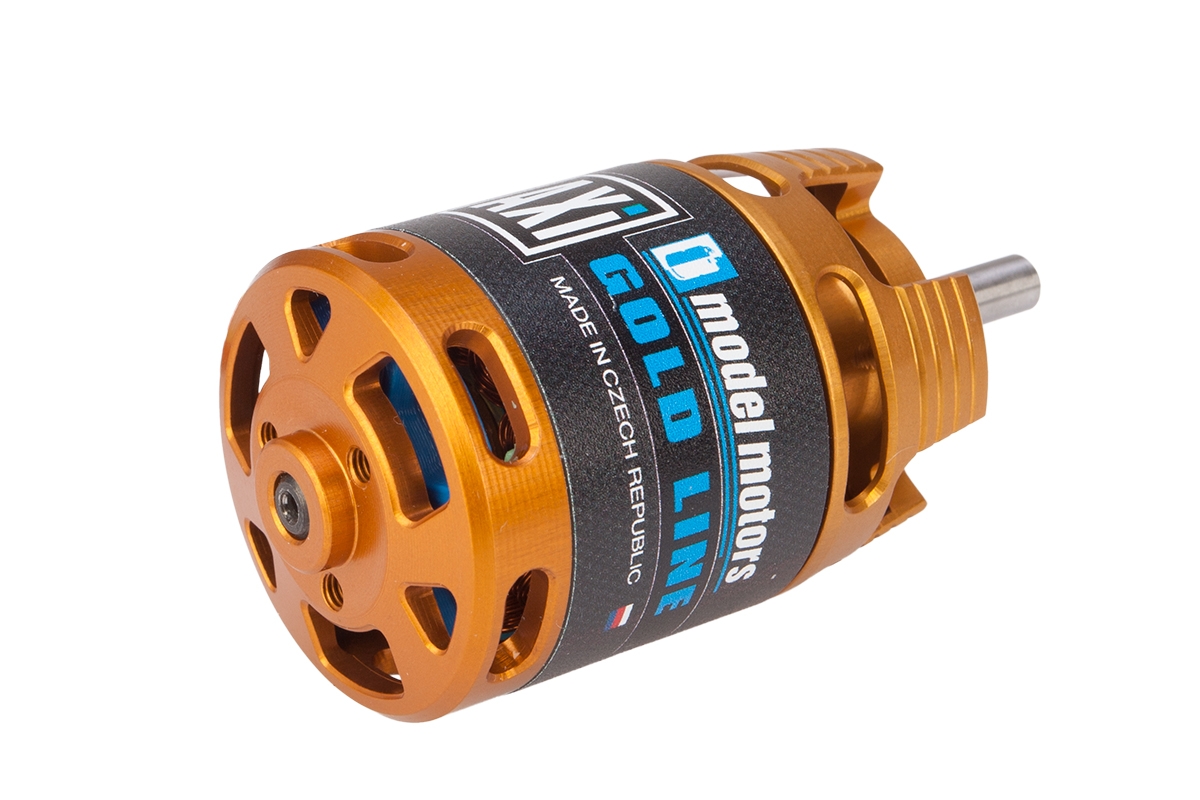

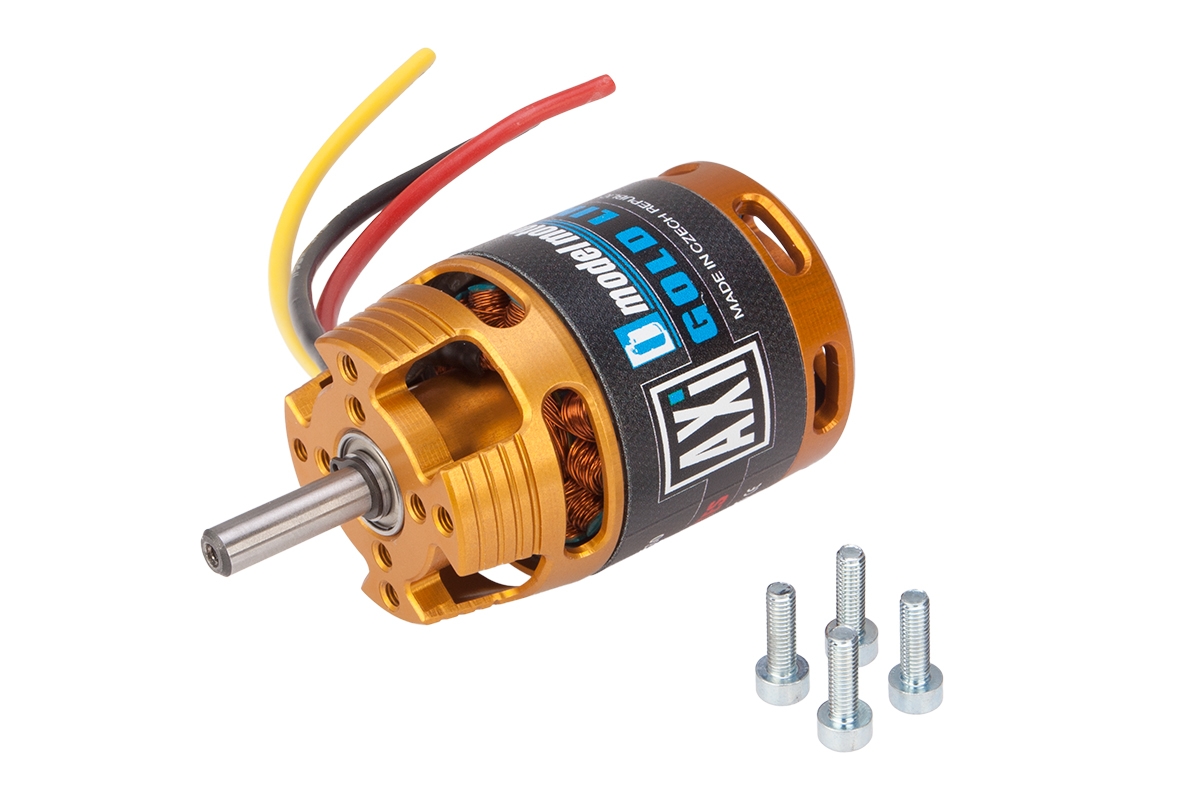

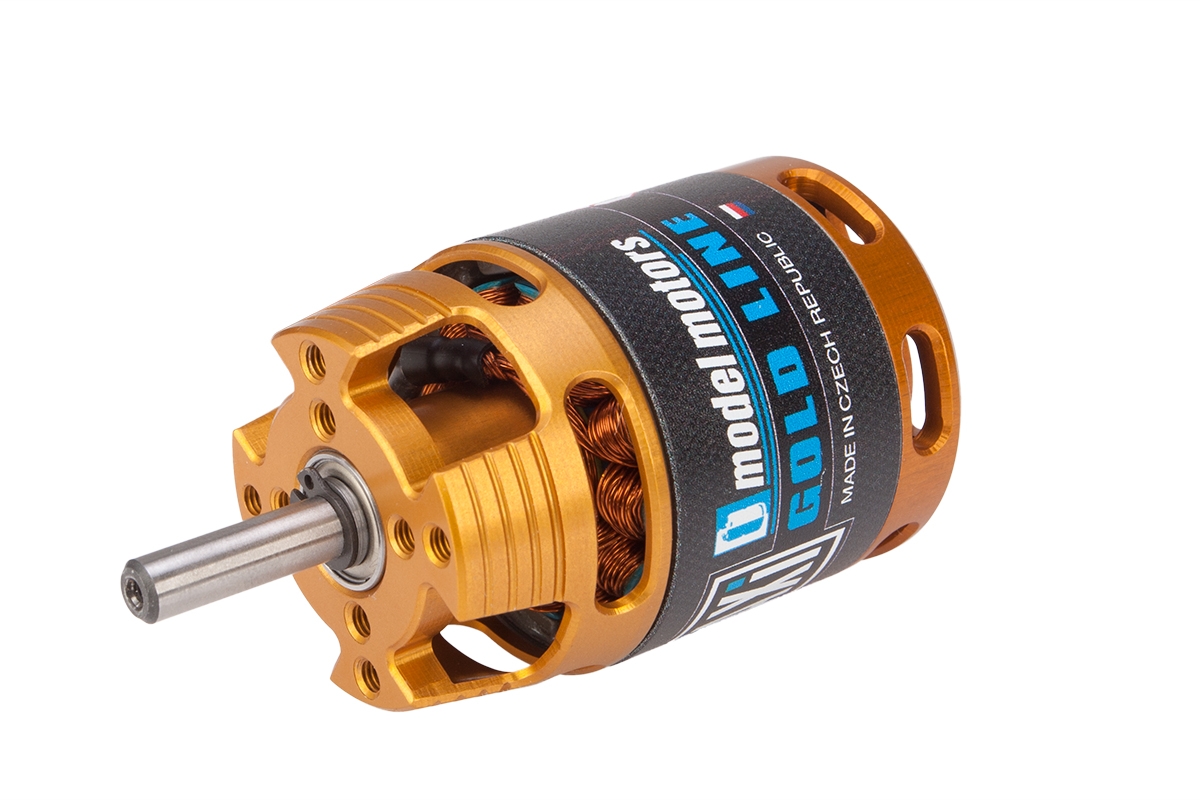

AXI 2820/8 V2 LONG Brushless Motor
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1500 ; Nr. of turns: 8 ; Internal resistance [mOhm]: 26 ; No load current [A]: 3.3 ; max. effenciency [%]: 84 ; Max. efficiency current (η>75%) [A]: 25 - 37 ; Max. peak current (60 s) [A]: 56 ; Max. power [W]: 565 ; Diameter [mm]: 35 ; Lenght [mm]: 52 ; Shaft diameter [mm]: 5 ; Weight [g]: 158 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 60 - 70 ; Sailplane up to Weight [g]: 2000 ; Acrobat up to Weight (hotliner) [g]: 1400
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 1500 |
| Turn count | 8 |
| Internal resistance [mOhm] | 26 |
| Open-circuit current [A] | 3.3 |
| Max. efficiency [%] | 84 |
| Max. efficiency current (η>75%) [A] | 25 - 37 |
| Max. peak current (60 s) [A] | 56 |
| Max. power [W] | 565 |

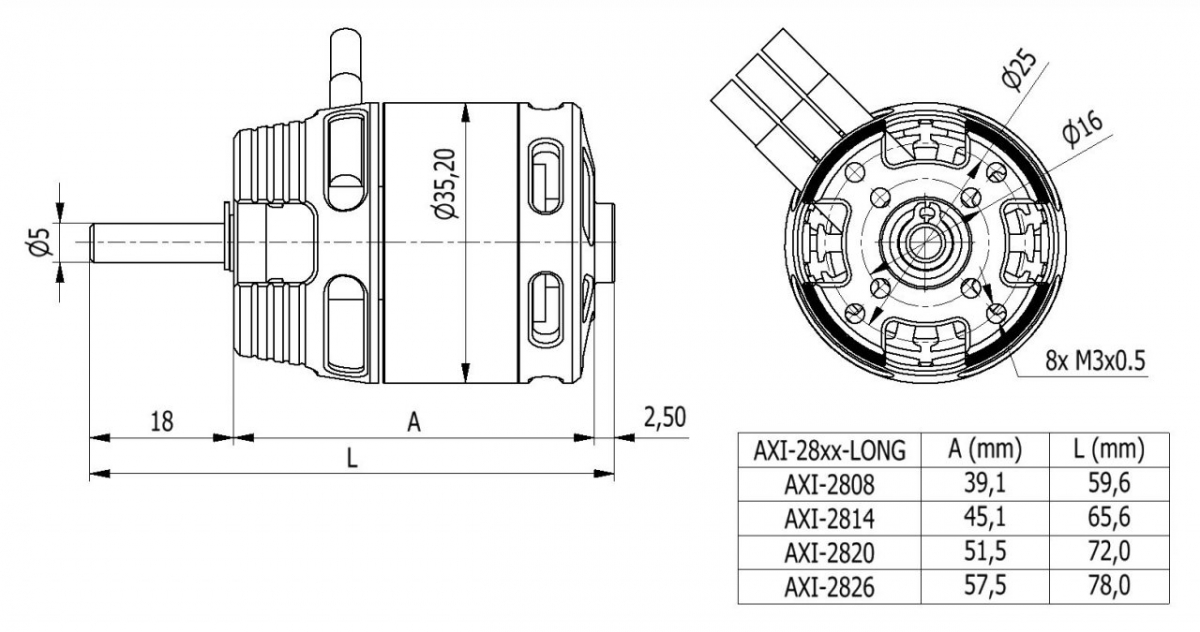

| Diameter [mm] | 35 |
| Length [mm] | 52 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 158 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 60 - 70 |
| Weight of glider (up-to) [g] | 2000 |
| Weight of acrobat (up-to) (hotliner) [g] | 1400 |
