Code:3EL105702
Barcode:8595247303233
Brand:AXI

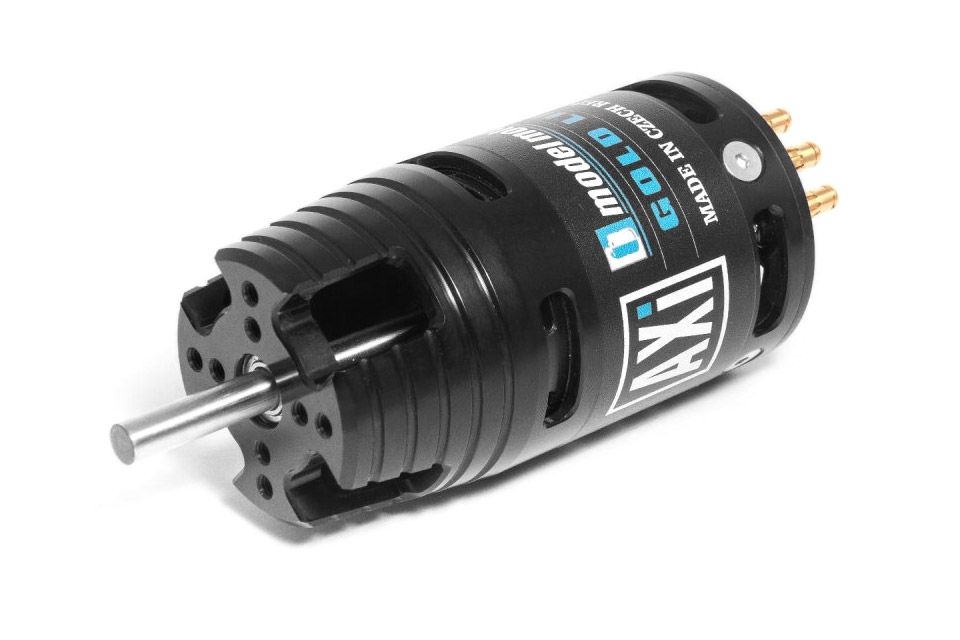

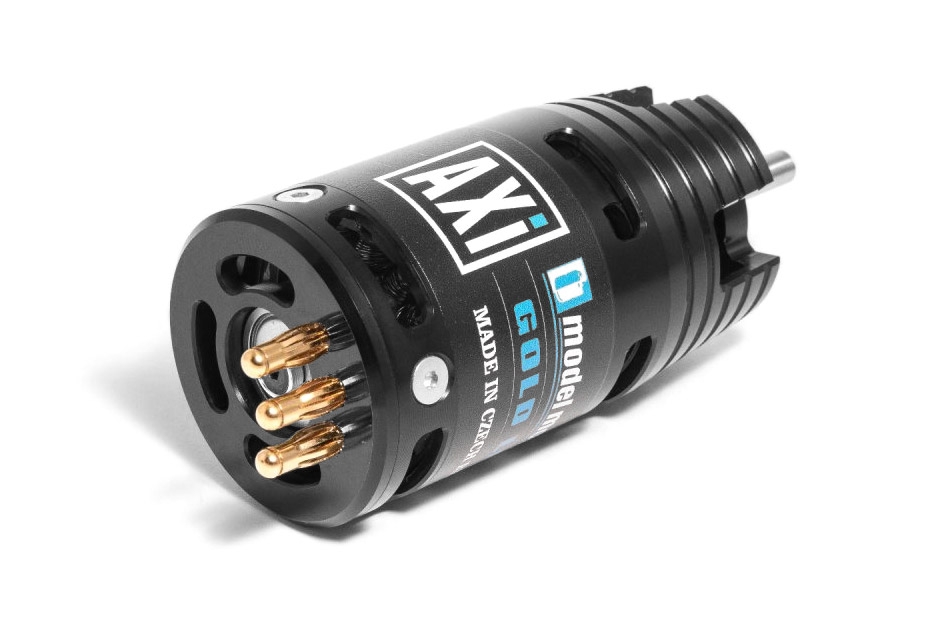

AXI 2814/20 Cyclone KV840
This item is not available in you region (United States)
Description
Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 840 ; Nr. of turns: 20 ; Internal resistance [mOhm]: 145 ; No load current [mA]: 600 ; max. effenciency [%]: 85 ; Max. efficiency current (η>75%) [A]: 8 - 17 ; Max. peak current (60 s) [A]: 28 ; Max. power [W]: 365 ; Diameter [mm]: 40 ; Lenght [mm]: 63 ; Shaft diameter [mm]: 5 ; Weight [g]: 164 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 30 - 40 ; Sailplane up to Weight [g]: 1900
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 840 |
| Turn count | 20 |
| Internal resistance [mOhm] | 145 |
| Open-circuit current [mA] | 600 |
| Max. efficiency [%] | 85 |
| Max. efficiency current (η>75%) [A] | 8 - 17 |
| Max. peak current (60 s) [A] | 28 |
| Max. power [W] | 365 |

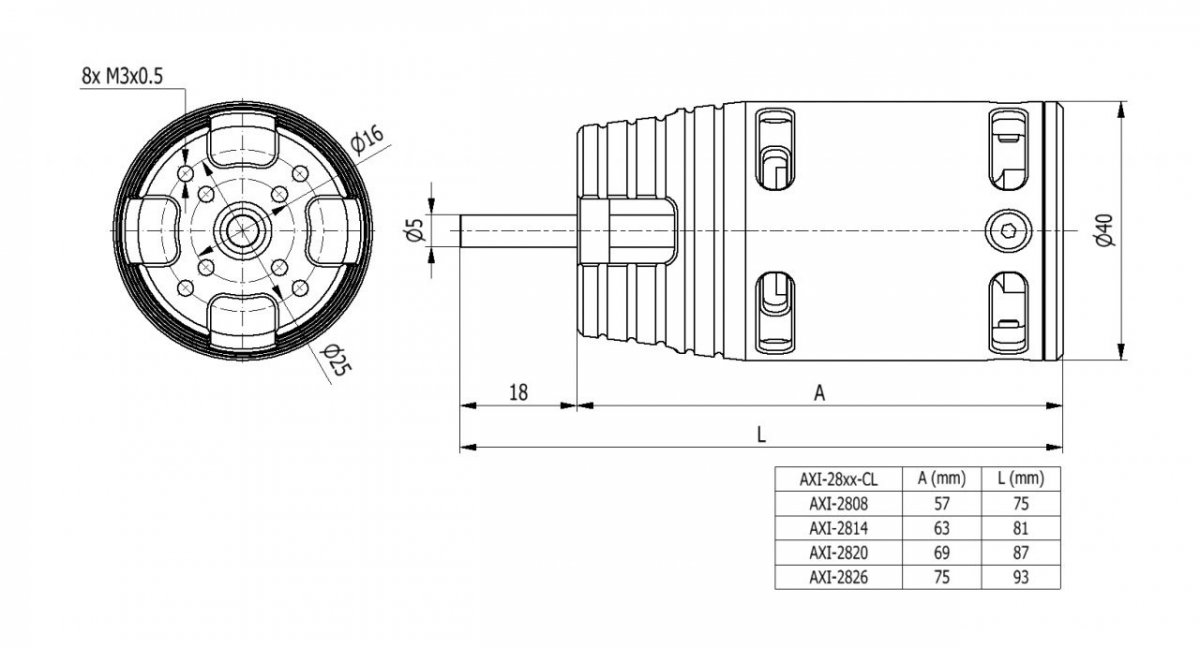

| Diameter [mm] | 40 |
| Length [mm] | 63 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 164 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 30 - 40 |
| Weight of glider (up-to) [g] | 1900 |
