Code:3EL105701
Barcode:8595247303226
Brand:AXI

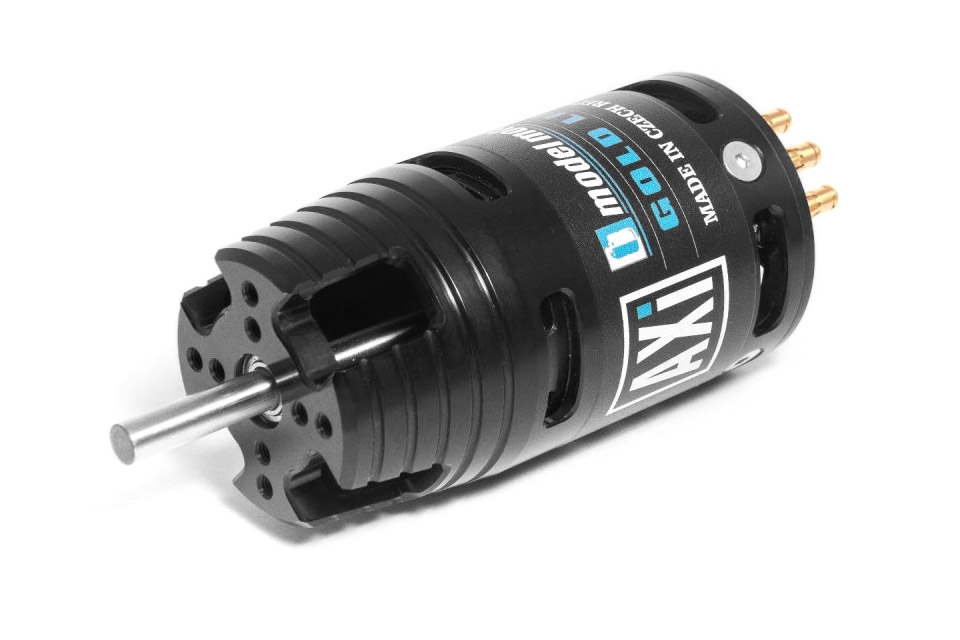

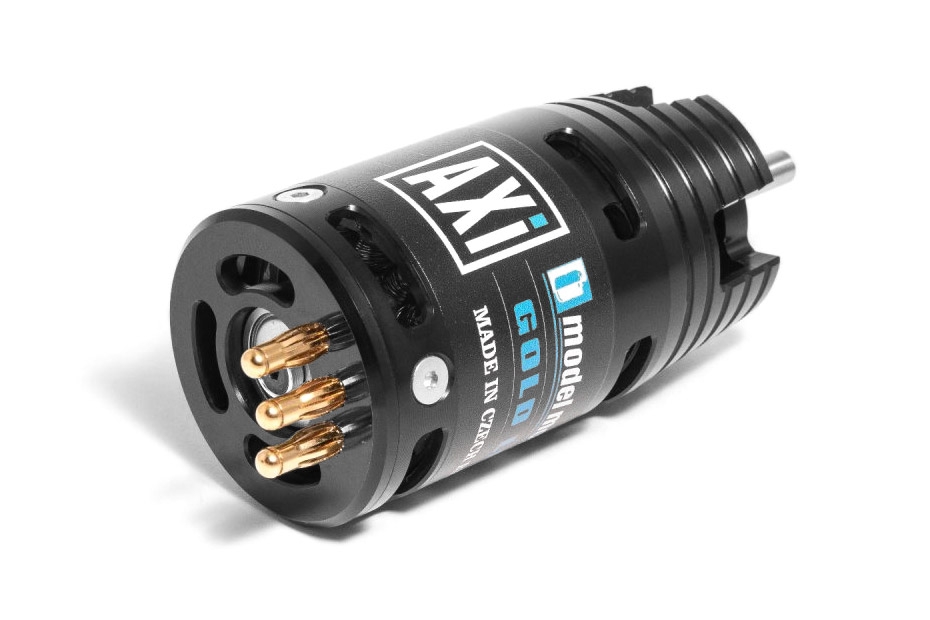

AXI 2814/16 Cyclone KV1035
This item is not available in you region (United States)
Description
Supply voltage LiXX cells: 3 ; RPM/V [RPM/min/V]: 1035 ; Nr. of turns: 16 ; Internal resistance [mOhm]: 85 ; No load current [A]: 1 ; max. effenciency [%]: 84 ; Max. efficiency current (η>75%) [A]: 12 - 20 ; Max. peak current (60 s) [A]: 36 ; Max. power [W]: 335 ; Diameter [mm]: 40 ; Lenght [mm]: 63 ; Shaft diameter [mm]: 5 ; Weight [g]: 164 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 40 - 50 ; Sailplane up to Weight [g]: 1700
| Powering LiXX cells | 3 |
| RPM/V [ot./min/V] | 1035 |
| Turn count | 16 |
| Internal resistance [mOhm] | 85 |
| Open-circuit current [A] | 1 |
| Max. efficiency [%] | 84 |
| Max. efficiency current (η>75%) [A] | 12 - 20 |
| Max. peak current (60 s) [A] | 36 |
| Max. power [W] | 335 |

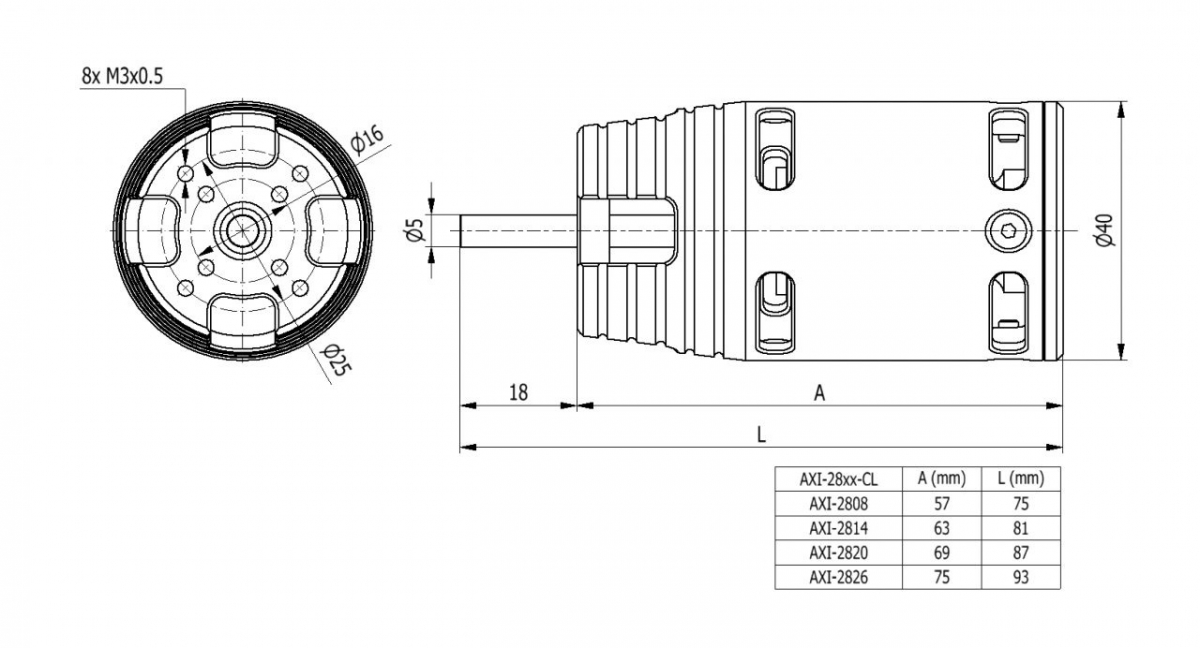

| Diameter [mm] | 40 |
| Length [mm] | 63 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 164 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 40 - 50 |
| Weight of glider (up-to) [g] | 1700 |
