Code:3EL10531V2L
Barcode:8595247302359
Brand:AXI

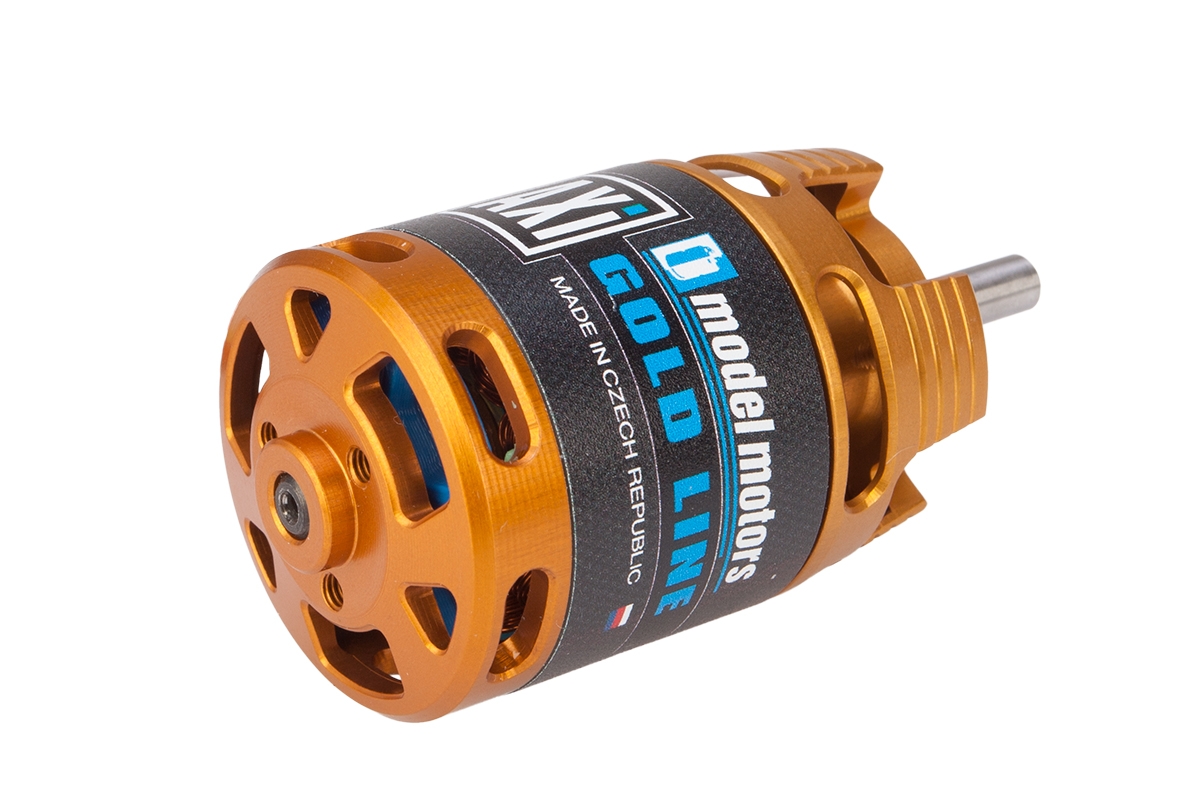

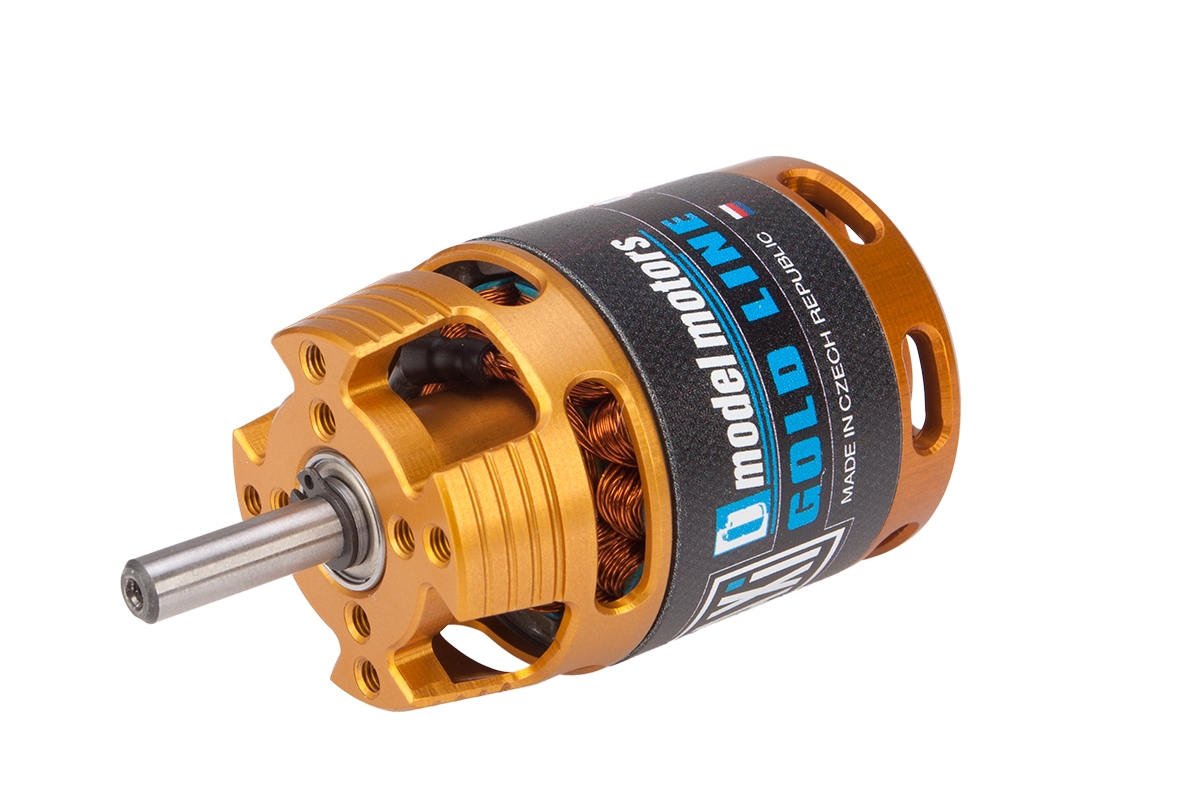

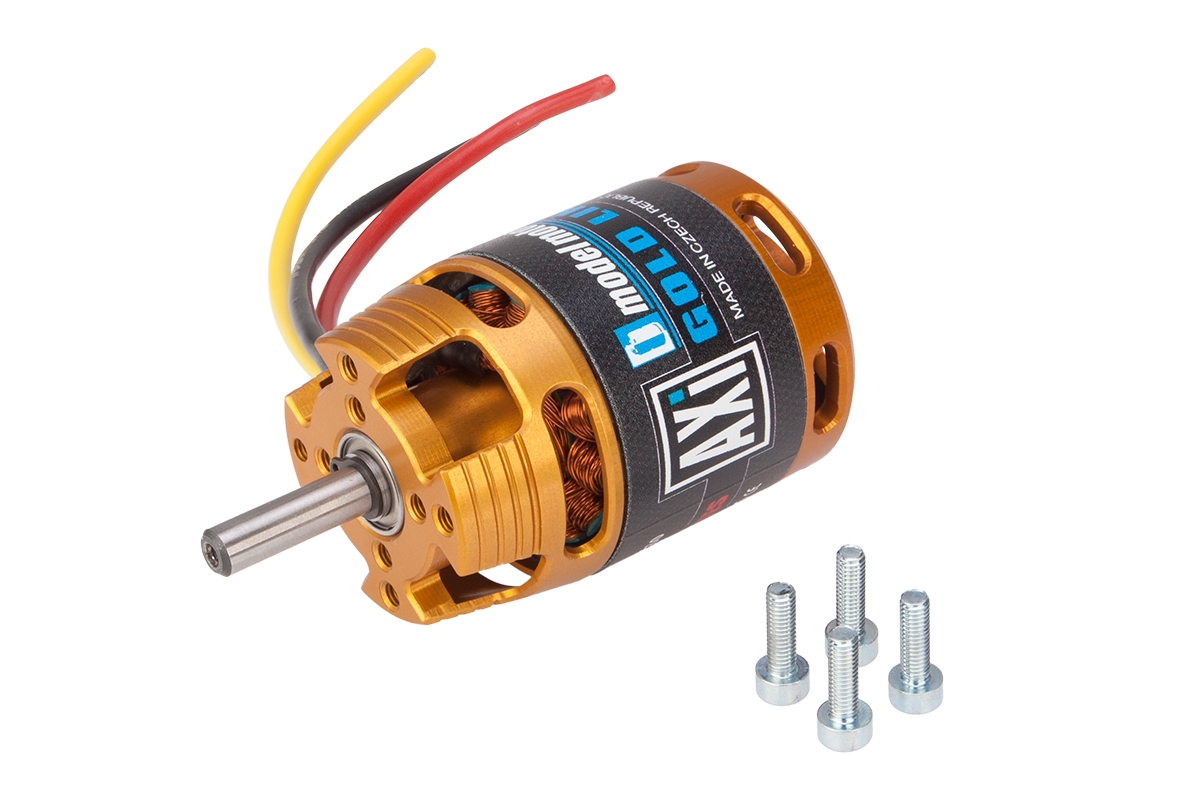

AXI 2814/10 V2 LONG Brushless
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1640 ; Nr. of turns: 10 ; Internal resistance [mOhm]: 37 ; No load current [A]: 2.3 ; max. effenciency [%]: 83 ; Max. efficiency current (η>75%) [A]: 20 - 30 ; Max. peak current (60 s) [A]: 46 ; Max. power [W]: 460 ; Diameter [mm]: 35 ; Lenght [mm]: 45 ; Shaft diameter [mm]: 5 ; Weight [g]: 115 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 50 - 70 ; Sailplane up to Weight [g]: 1500 ; Trainer up to Weight [g]: 1500 ; Acrobat up to Weight [g]: 1200 ; 3d up to Weight [g]: 900
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 1640 |
| Turn count | 10 |
| Internal resistance [mOhm] | 37 |
| Open-circuit current [A] | 2.3 |
| Max. efficiency [%] | 83 |
| Max. efficiency current (η>75%) [A] | 20 - 30 |
| Max. peak current (60 s) [A] | 46 |
| Max. power [W] | 460 |

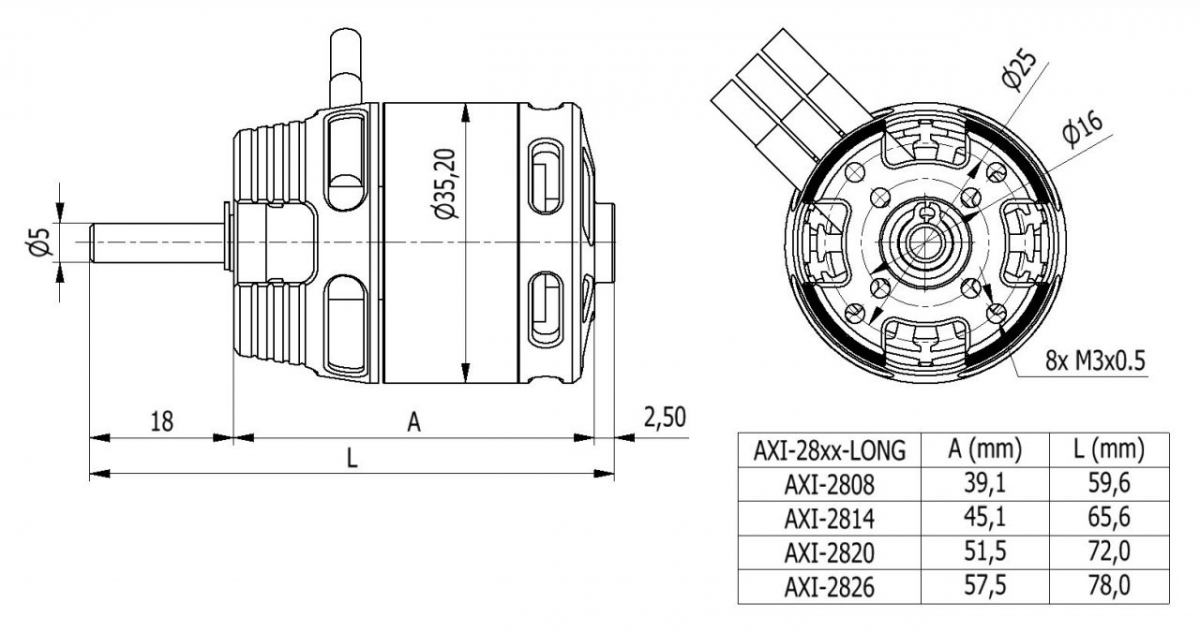

| Diameter [mm] | 35 |
| Length [mm] | 45 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 115 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 50 - 70 |
| Weight of glider (up-to) [g] | 1500 |
| Weight of trainer (up-to) [g] | 1500 |
| Weight of acrobat (up-to) [g] | 1200 |
| Weight of 3D (up-to) [g] | 900 |
