Code:3EL10535V2
Barcode:8595247302182
Brand:AXI
AXI 2808/24 V2 Brushless
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1190 ; Nr. of turns: 24 ; Internal resistance [mOhm]: 115 ; No load current [A]: 1 ; max. effenciency [%]: 84 ; Max. efficiency current (η>75%) [A]: 6 - 15 ; Max. peak current (60 s) [A]: 23 ; Max. power [W]: 232 ; Diameter [mm]: 35 ; Lenght [mm]: 31.5 ; Shaft diameter [mm]: 5 ; Weight [g]: 77 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 30 - 35 ; Sailplane up to Weight [g]: 1300 ; Trainer up to Weight [g]: 1300 ; Acrobat up to Weight [g]: 1000 ; 3d up to Weight [g]: 800
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 1190 |
| Turn count | 24 |
| Internal resistance [mOhm] | 115 |
| Open-circuit current [A] | 1 |
| Max. efficiency [%] | 84 |
| Max. efficiency current (η>75%) [A] | 6 - 15 |
| Max. peak current (60 s) [A] | 23 |
| Max. power [W] | 232 |
| Diameter [mm] | 35 |
| Length [mm] | 31.5 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 77 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 30 - 35 |
| Weight of glider (up-to) [g] | 1300 |
| Weight of trainer (up-to) [g] | 1300 |
| Weight of acrobat (up-to) [g] | 1000 |
| Weight of 3D (up-to) [g] | 800 |

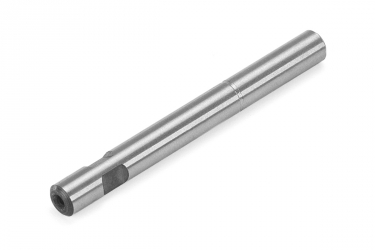

Spare parts (1)
