Code:3EL105700
Barcode:8595247303219
Brand:AXI

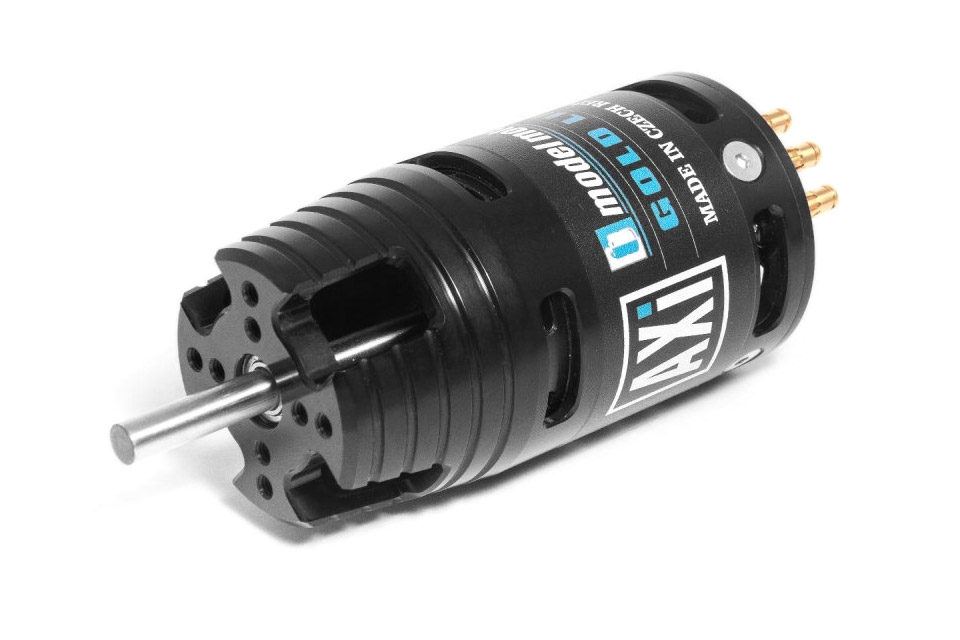

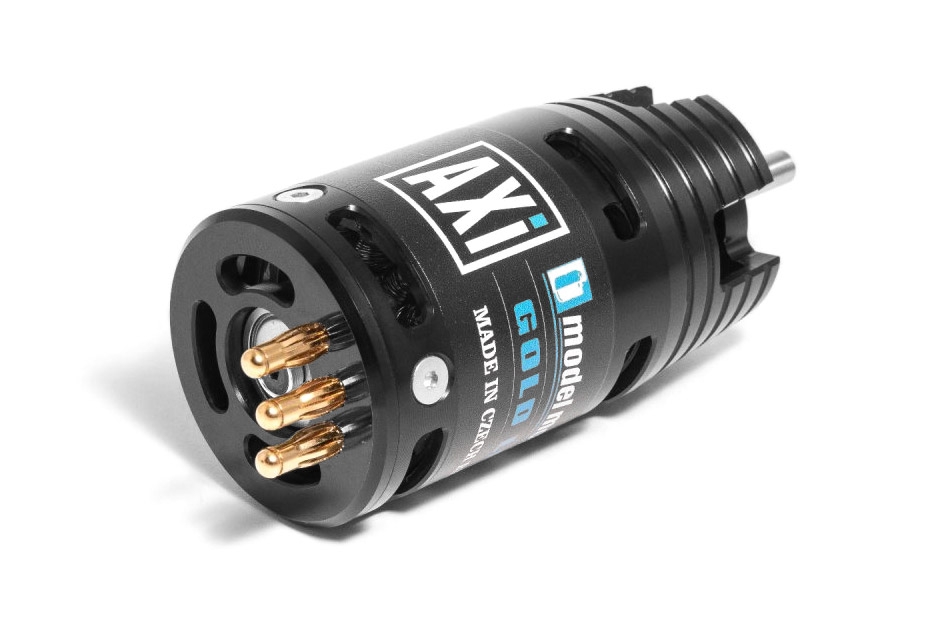

AXI 2808/24 Cyclone KV1190
This item is not available in you region (United States)
Description
Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1190 ; Nr. of turns: 24 ; Internal resistance [mOhm]: 115 ; No load current [A]: 1 ; max. effenciency [%]: 84 ; Max. efficiency current (η>75%) [A]: 6 - 15 ; Max. peak current (60 s) [A]: 25 ; Max. power [W]: 240 ; Diameter [mm]: 40 ; Lenght [mm]: 57 ; Shaft diameter [mm]: 5 ; Weight [g]: 130 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 30 - 35 ; Sailplane up to Weight [g]: 1300
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 1190 |
| Turn count | 24 |
| Internal resistance [mOhm] | 115 |
| Open-circuit current [A] | 1 |
| Max. efficiency [%] | 84 |
| Max. efficiency current (η>75%) [A] | 6 - 15 |
| Max. peak current (60 s) [A] | 25 |
| Max. power [W] | 240 |
| Diameter [mm] | 40 |
| Length [mm] | 57 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 130 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 30 - 35 |
| Weight of glider (up-to) [g] | 1300 |
