Code:3EL105707
Barcode:8595247303776
Brand:AXI

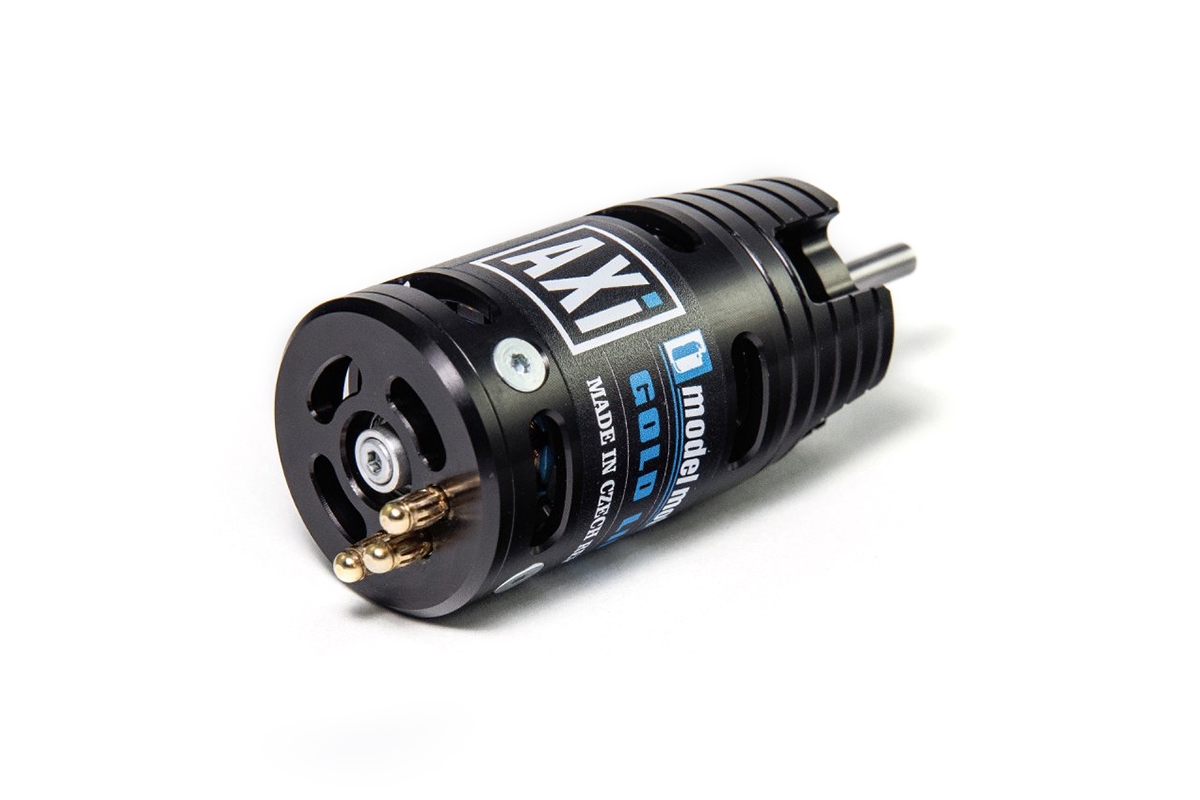

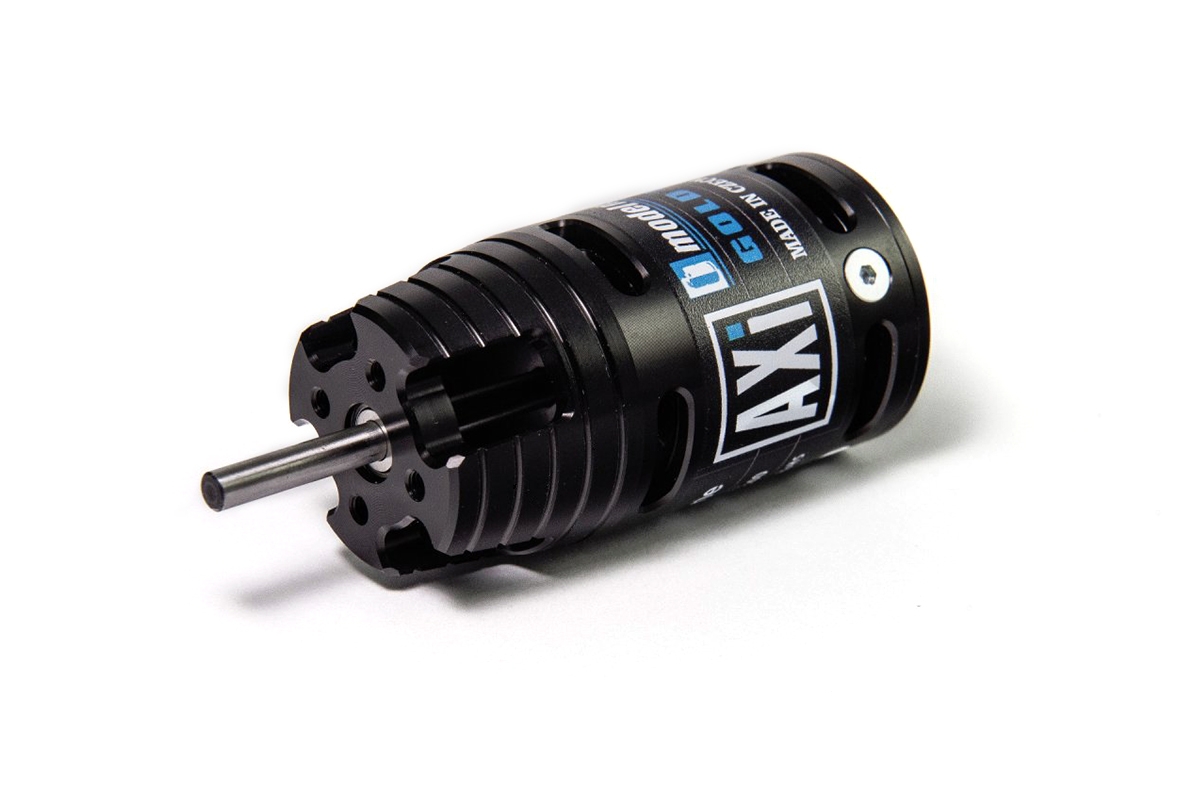

AXI 2220/12 Cyclone KV760

This item is not available in you region (United States)
Description

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1200 ; Nr. of turns: 12 ; Internal resistance [mOhm]: 39.1 ; No load current [A]: 1.5 ; max. effenciency [%]: 87 ; Max. efficiency current (η>75%) [A]: 20 - 28 ; Max. peak current (60 s) [A]: 40 ; Max. power [W]: 450 ; Diameter [mm]: 32.8 ; Lenght [mm]: 63 ; Shaft diameter [mm]: 4 ; Weight [g]: 129 ; ESC [A] : 30 - 40 ; Sailplane up to Weight [g]: 1200 ; Acrobat up to Weight [g]: 1100 ; 3d up to Weight [g]: 900

Powering LiXX cells2 - 3
RPM/V [ot./min/V]1200
Turn count12
Internal resistance [mOhm]39.1
Open-circuit current [A]1.5
Max. efficiency [%]87
Max. efficiency current (η>75%) [A]20 - 28
Max. peak current (60 s) [A]40
Max. power [W]450

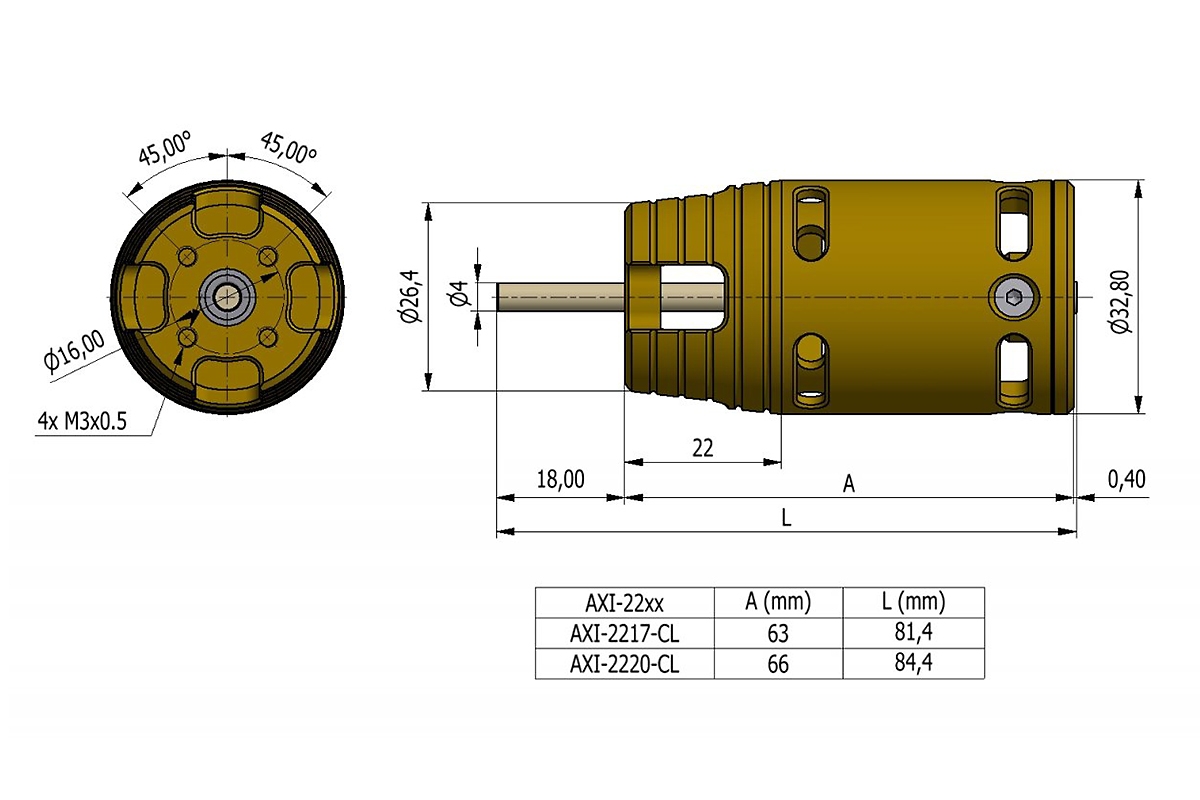

Diameter [mm]32.8
Length [mm]63
Shaft diameter [mm]4
Weight [g]129
ESC [A] 30 - 40
Weight of glider (up-to) [g]1200
Weight of acrobat (up-to) [g]1100
Weight of 3D (up-to) [g]900
