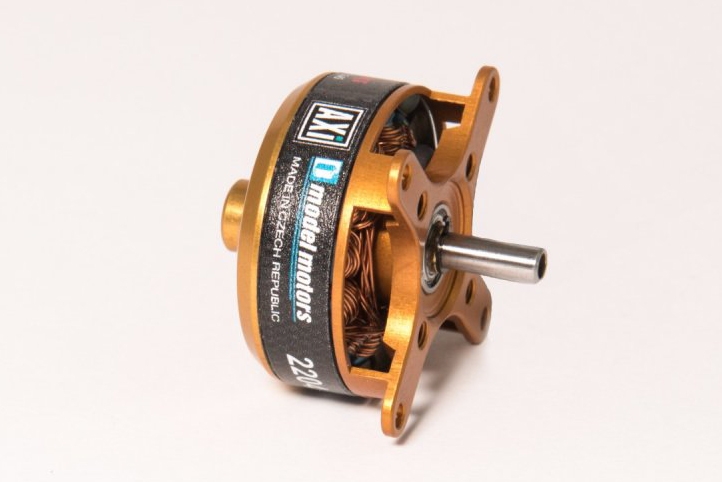

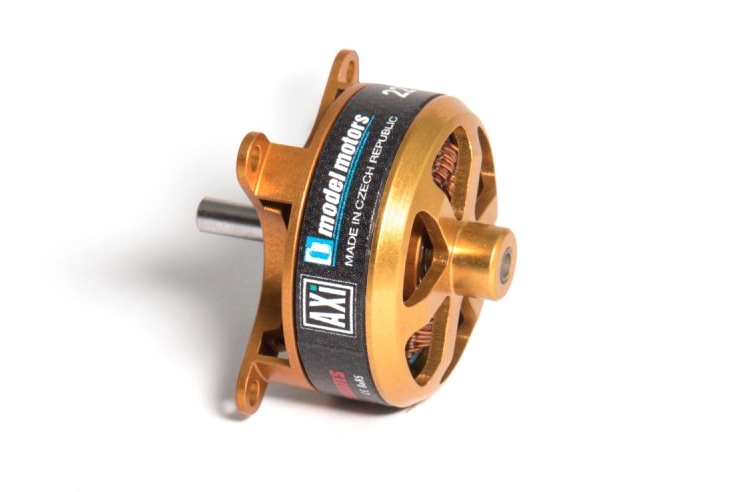

AXI 2204/RACE V2 Brushless

This improved and more powerful brushless motor with neodymium magnets and a rotating case was designed especially for the fast growing area of indoor aerobatic models. The AXI2204/RACE GOLD LINE V2 is very light and offers different mounting options. This motor was tuned by Donatas Pauzuolis especially for area of fast indoor aerobatic models. Although the construction of the motor is very light, the motor is still robust, and the hardened steel hollow shaft is supported by two ball bearings. This motor is suitable for indoor or outdoor aerobatic models weighing up to 320g.

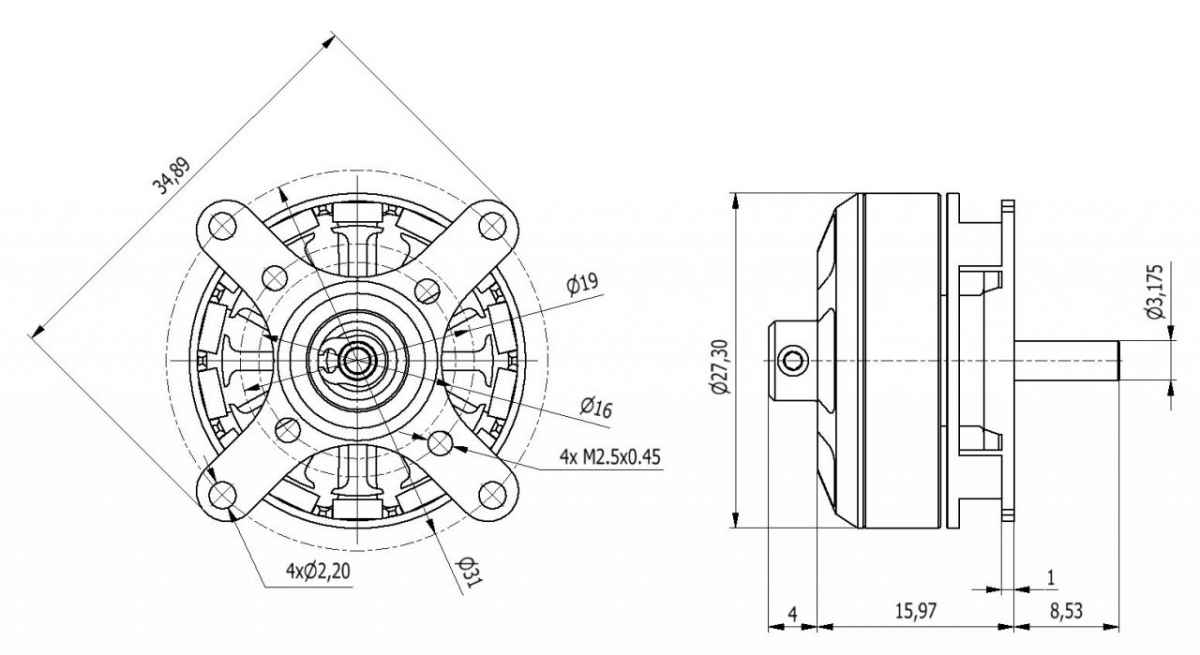

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 2300 ; Internal resistance [mOhm]: 220 ; No load current [mA]: 550 ; max. effenciency [%]: 77 ; Max. efficiency current (η>69%) [A]: 4 - 9.5 ; Max. peak current (20 s) [A]: 12 ; Max. power [W]: 74 ; Diameter [mm]: 27.7 ; Lenght [mm]: 28 ; Shaft diameter [mm]: 3.17 ; Weight [g]: 22.5 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 12 - 20 ; Acrobat up to Weight (AirRace) [g]: 170
