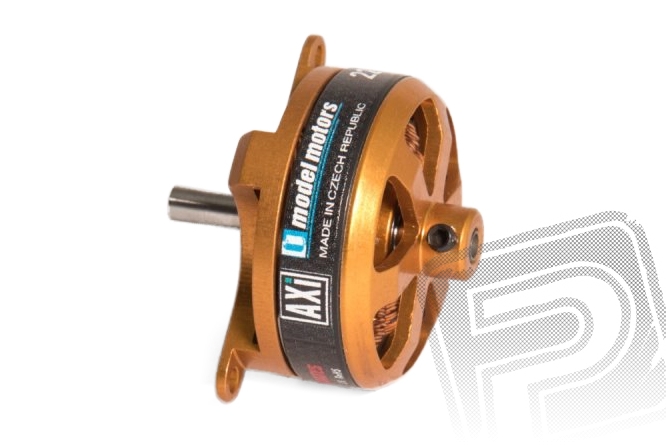

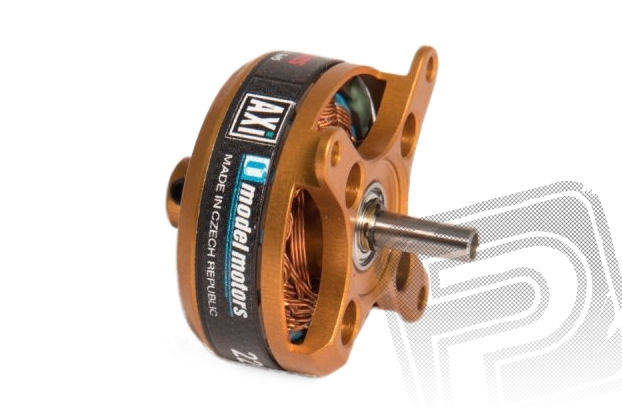

AXI 2203/RACE V2

New very light and powerful motor AXI 2203/RACE GOLD LINE V2 with hollow shaft, these motors have three-point mounting lugs and reach just 19g in weight. These motors was tuned by Gernot Bruckmann especially for area of fast indoor aerobatic models. Three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3,17mm best quality hollow shaft is supported by two ball bearings. This motor is suitable particularly for light AIR RACE and fast aerobatic indoor models up to 170g in weight.

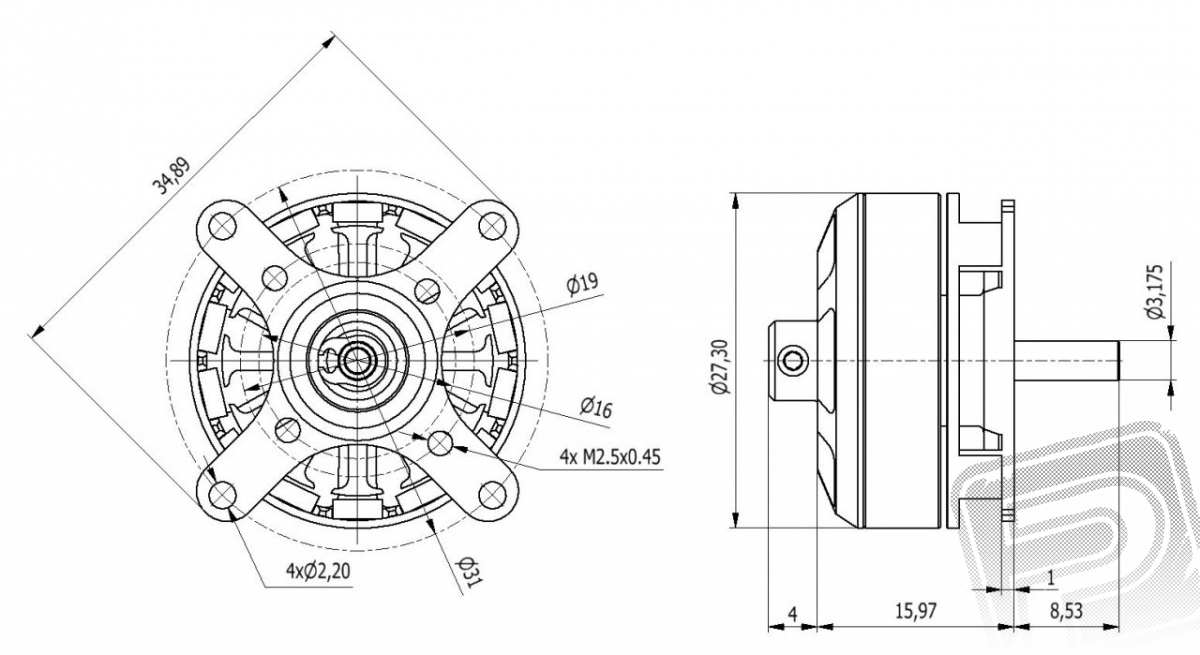

Supply voltage LiXX cells: 2 ; RPM/V [RPM/min/V]: 2300 ; Internal resistance [mOhm]: 220 ; No load current [mA]: 550 ; max. effenciency [%]: 75 ; Max. efficiency current (η>69%) [A]: 3 - 7.5 ; Max. peak current (20 s) [A]: 10 ; Max. power [W]: 63 ; Diameter [mm]: 27.7 ; Lenght [mm]: 21 ; Shaft diameter [mm]: 3.17 ; Weight [g]: 19 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 10 - 12 ; Acrobat up to Weight [g]: 170
