Code:3EL105520V2S
Barcode:8595247303035
Brand:AXI

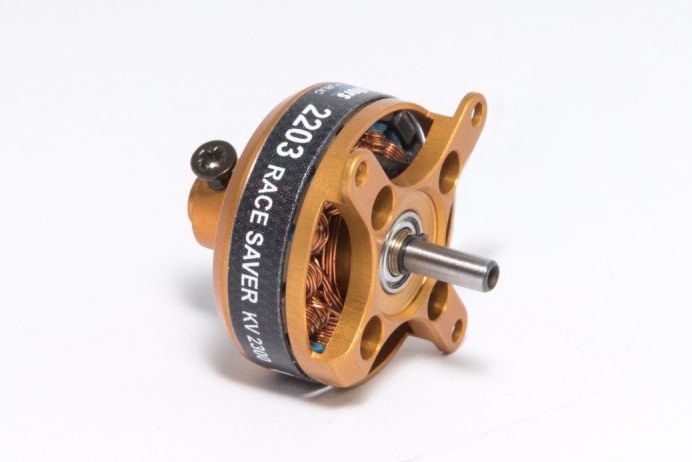

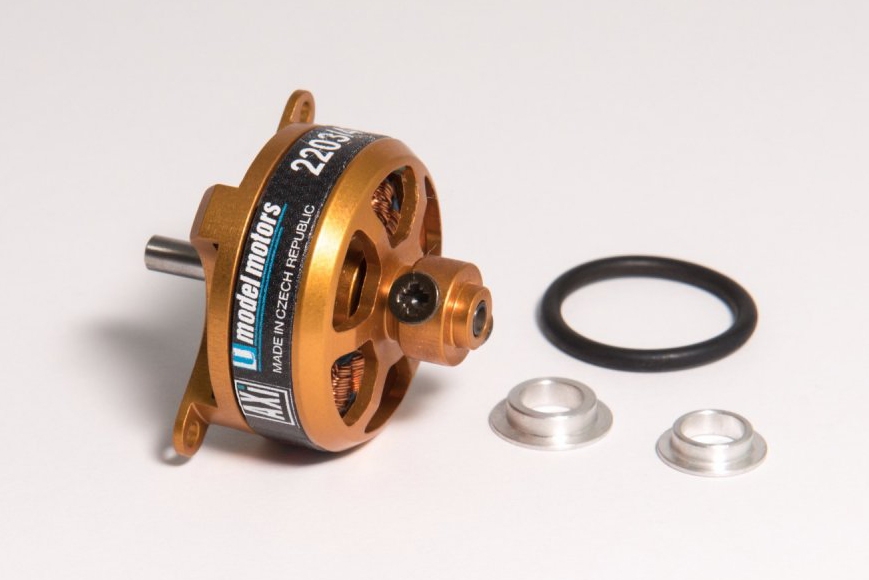

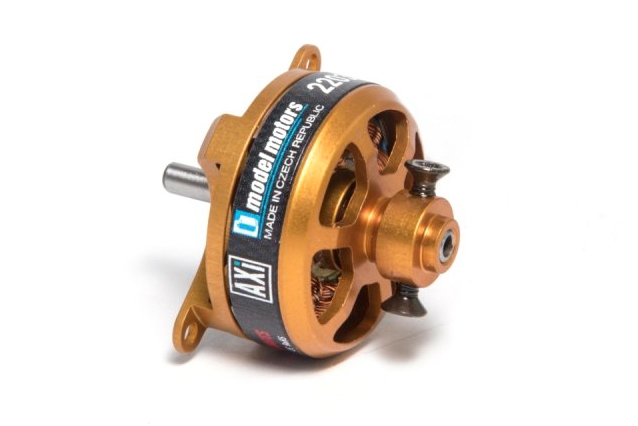

AXI 2203/RACE SAVER V2 Brushless

This item is not available in you region (United States)
Description
Spare parts
New very light and powerful motor AXI 2203/RACE SAVER GOLD LINE V2 with shaft, these motors have integrated prop adapter and three-point mounting lugs reach just 19 g in weight. This motor was tuned by Gernot Bruckmann especially for area of fast indoor aerobatic models. Three-point mounting lugs allowseasy mounting to the fuselage of model and fast centering of motor. 3,17mm best quality hollow shaft is supported by two ball bearings. This motor is suitable particularly for light AIR RACE and fast aerobatic indoor models up to 170g in weight.

Supply voltage LiXX cells: 2 ; RPM/V [RPM/min/V]: 2300 ; Internal resistance [mOhm]: 220 ; No load current [mA]: 550 ; max. effenciency [%]: 75 ; Max. efficiency current (η>69%) [A]: 3 - 7.5 ; Max. peak current (20 s) [A]: 10 ; Max. power [W]: 62 ; Diameter [mm]: 27.7 ; Lenght [mm]: 21 ; Shaft diameter [mm]: 3.17 ; Weight [g]: 19 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 10 - 12 ; Acrobat up to Weight [g]: 170

Powering LiXX cells2
RPM/V [ot./min/V]2300
Internal resistance [mOhm]220
Open-circuit current [mA]550
Max. efficiency [%]75
Max. efficiency current (η>69%) [A]3 - 7.5
Max. peak current (20 s) [A]10
Max. power [W]62
Diameter [mm]27.7
Length [mm]21
Shaft diameter [mm]3.17
Weight [g]19
Poles count14
Timing [°]15 - 25
ESC [A] 10 - 12
Weight of acrobat (up-to) [g]170
