AXI 2203/52 V2 Brushless

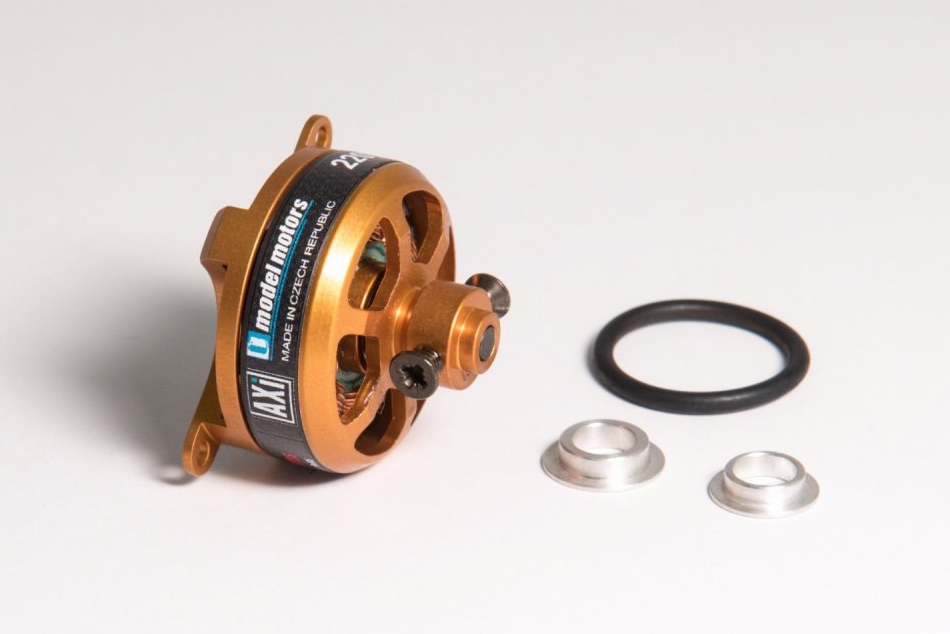

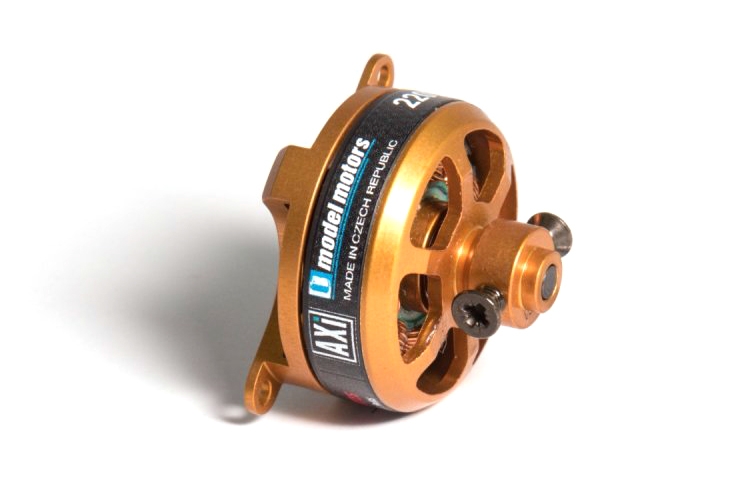

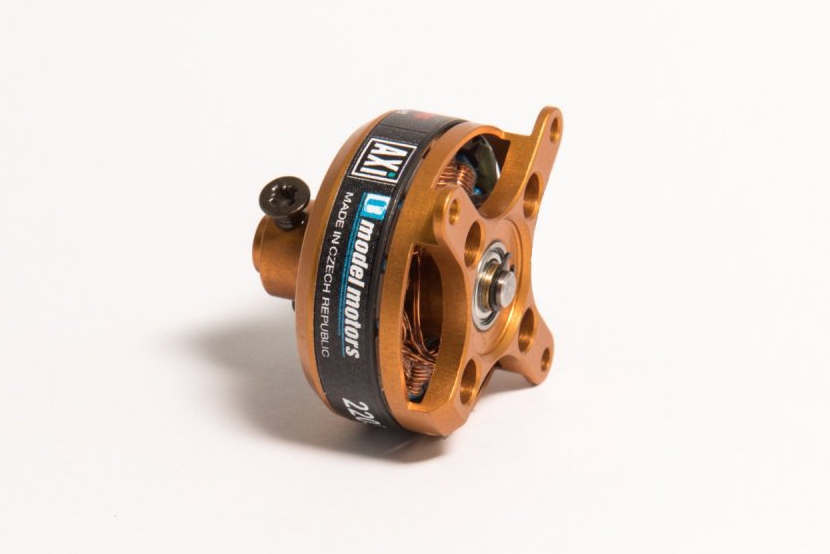

New very light motor AXI 2203/52 GOLD LINE V2 with shaft, integrated prop saver and three-point mounting lugs reach just 20g in weight. This motor was designed especially for area of the lightest indoor aerobatic models. New three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3,17mm best quality shaft is supported by two ball bearings. This motor is suitable particularly for light 3D and aerobatic indoor models up to 190g in weight.

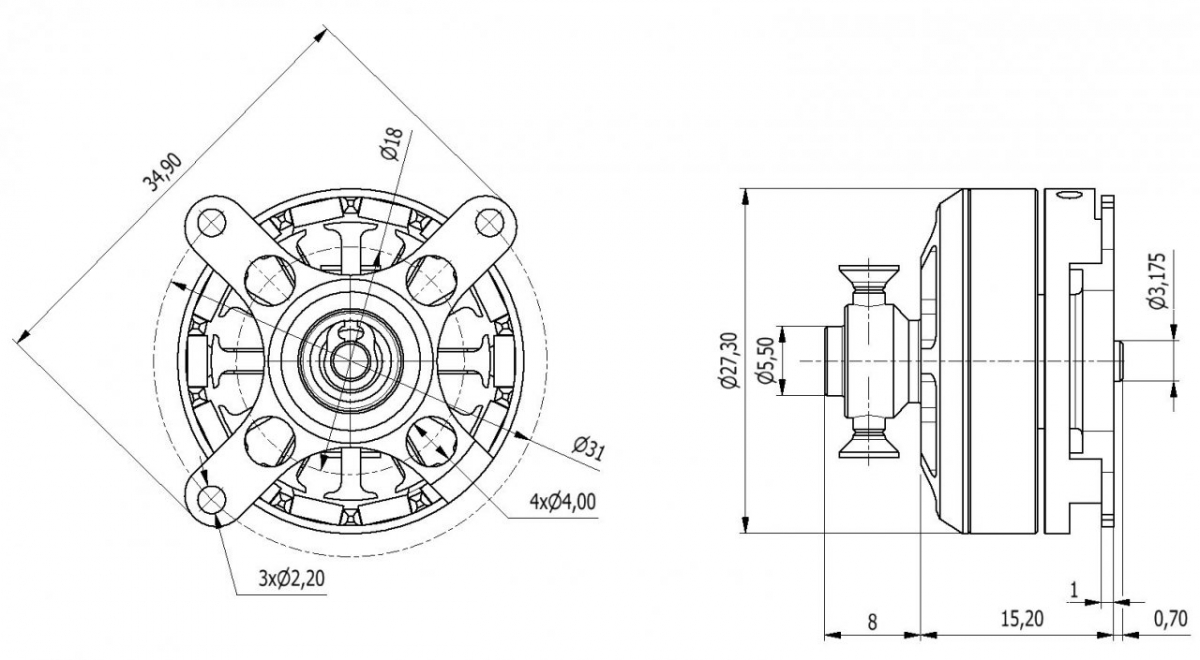

Supply voltage LiXX cells: 2 ; RPM/V [RPM/min/V]: 1525 ; Nr. of turns: 52 ; Internal resistance [mOhm]: 390 ; No load current [mA]: 400 ; max. effenciency [%]: 75 ; Max. efficiency current (η>69%) [A]: 2 - 5.5 ; Max. peak current (20 s) [A]: 8 ; Max. power [W]: 51 ; Diameter [mm]: 27.7 ; Lenght [mm]: 21 ; Shaft diameter [mm]: 3.17 ; Weight [g]: 20 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 10 - 12 ; Trainer up to Weight [g]: 260 ; Acrobat up to Weight [g]: 190 ; 3d up to Weight [g]: 150
