90mm EDF Avanti PNP

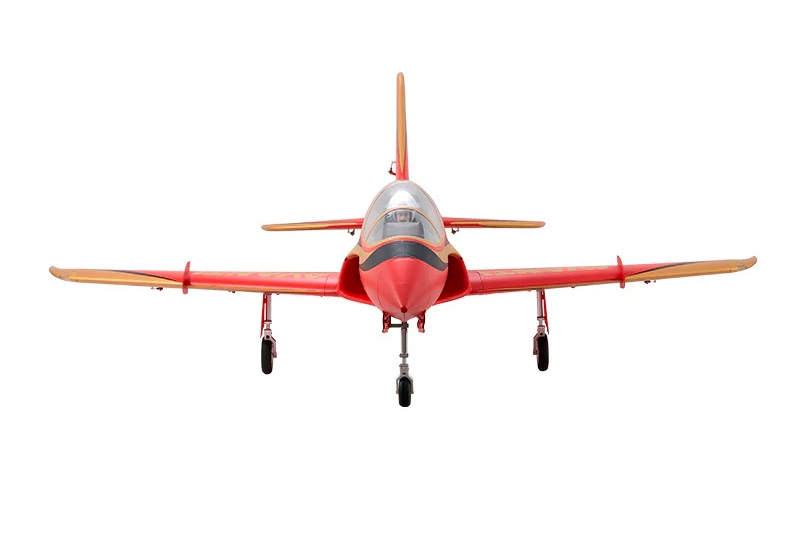

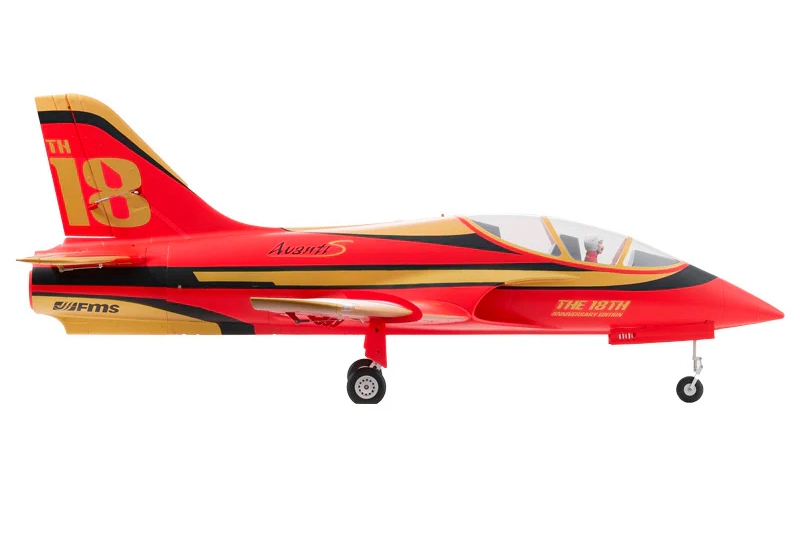

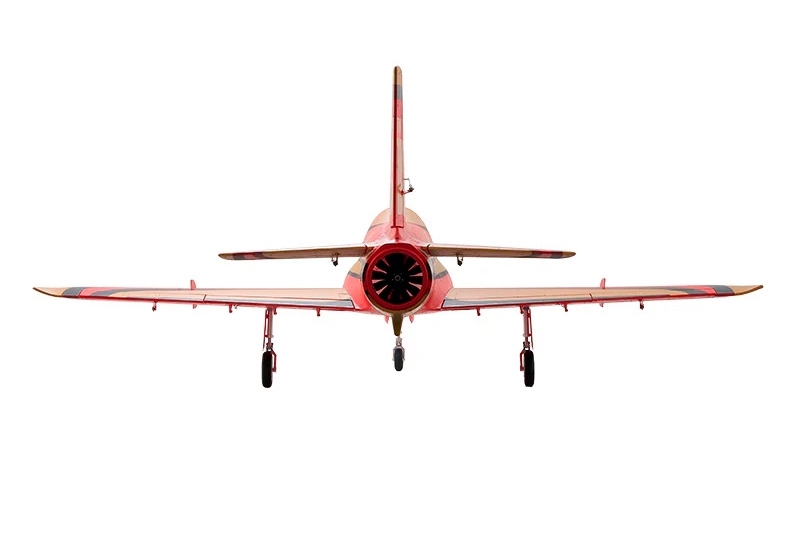

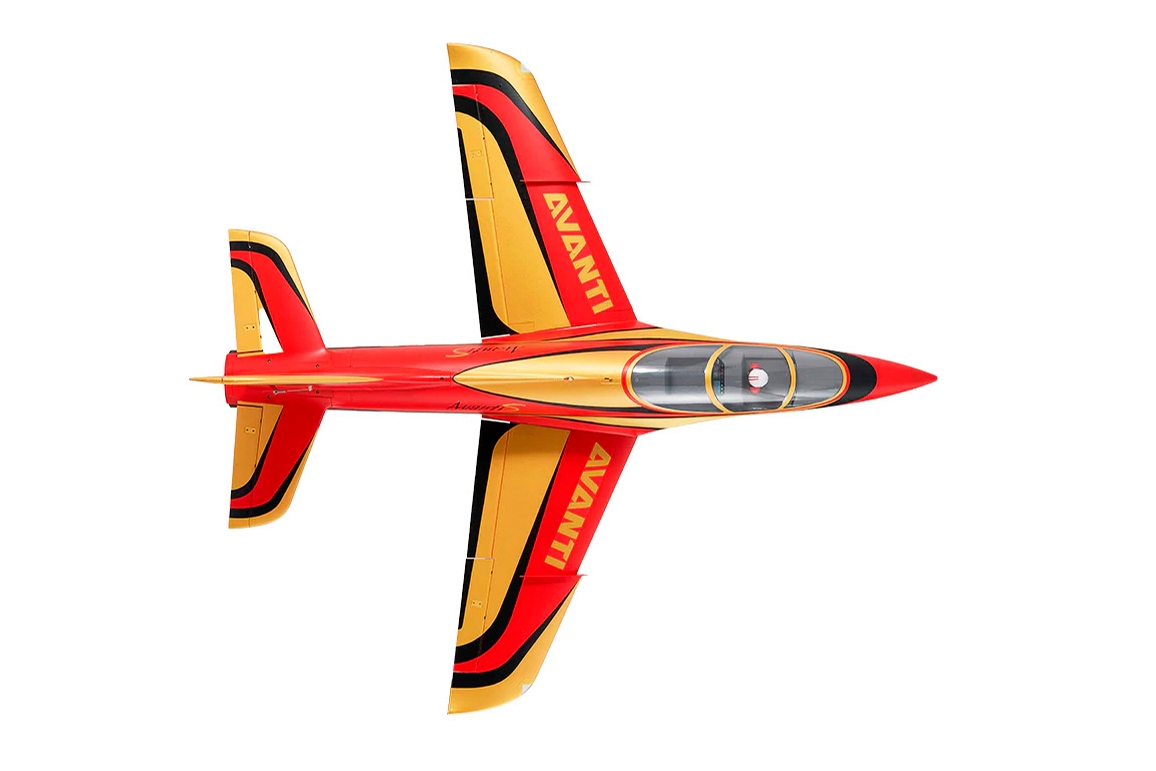

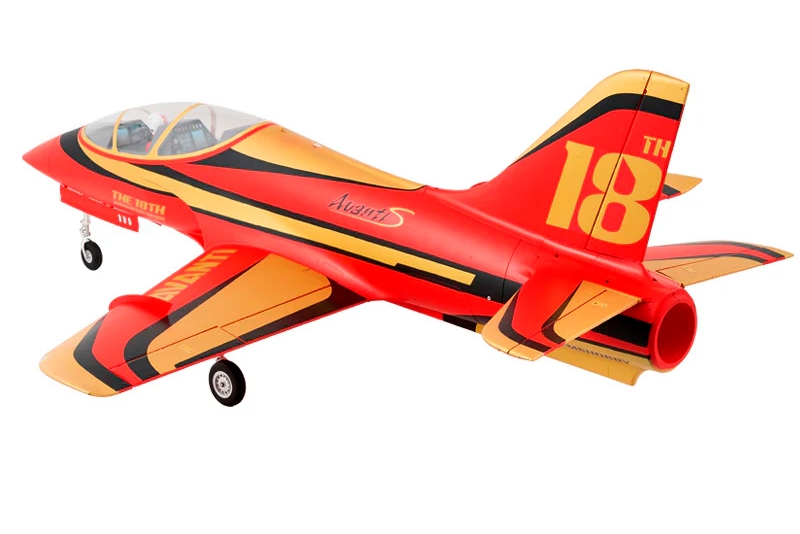

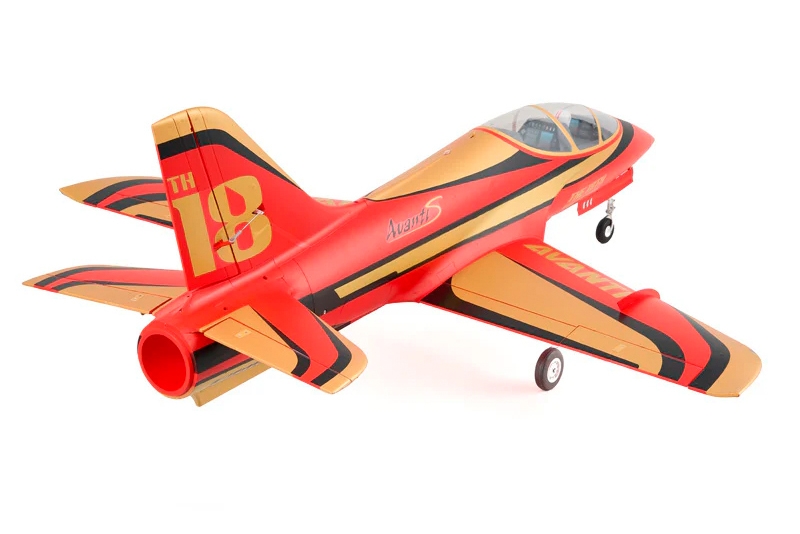

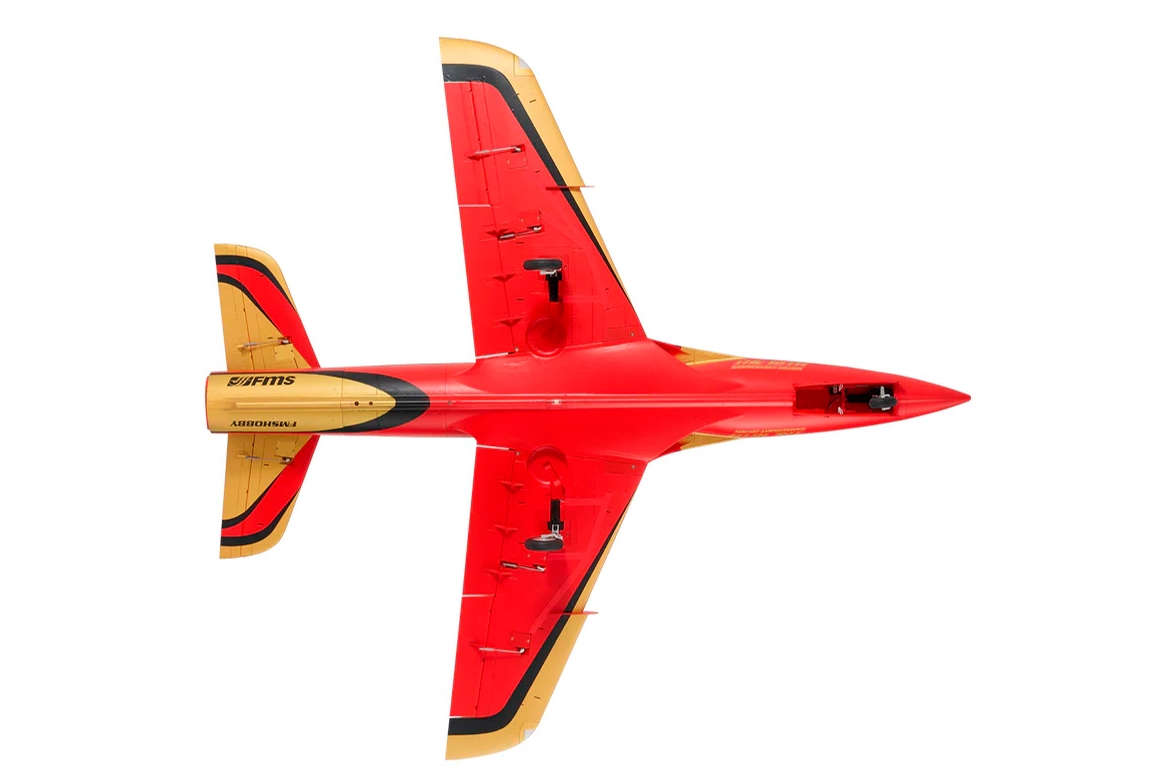

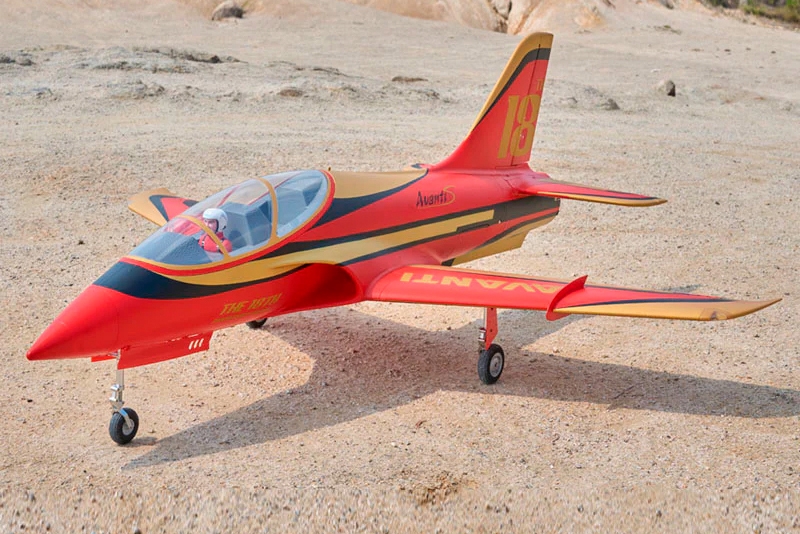

RC Jet Model 90mm Avanti PNP

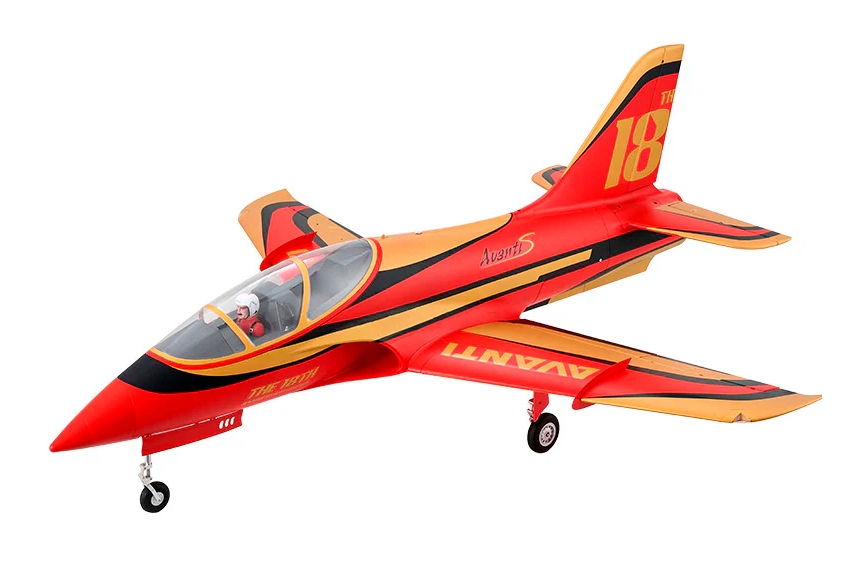

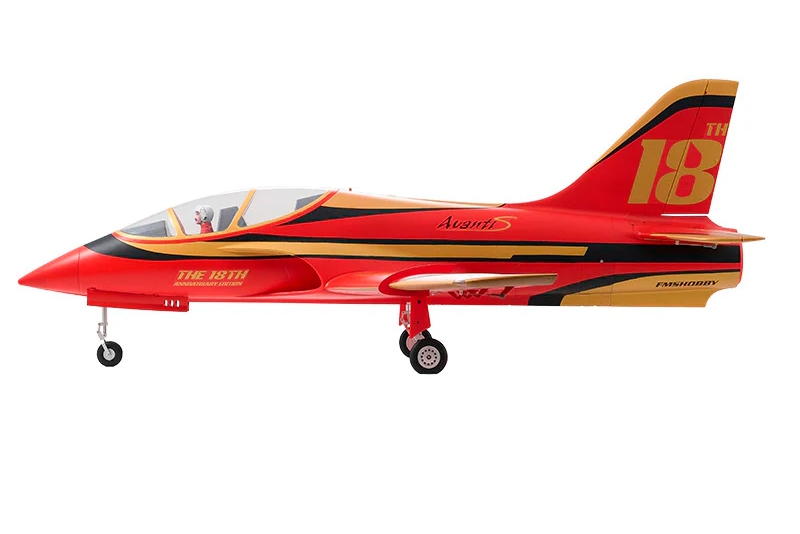

The powerful and precisely crafted 90mm Avanti model in PNP version is designed for intermediate to advanced pilots. The aircraft is made from EPO foam and comes equipped with a 12-blade ducted fan, 3670-KV1950 motor, and a 120A ESC. It features functional ailerons, flaps, rudder, and retractable landing gear.

Technical Specifications:

Wingspan: 1290 mm / 50.8"
Length: 1360 mm / 53.5"
Flying Weight: Approximately 3200 g
Motor: 3670 KV1950
ESC: 120A
Servos: 13g, 8 pcs
Radio Channels: 6
Centre of Gravity (CG): 125–135 mm
Propulsion: 90mm 12-blade ducted fan
Recommended Battery: 22.2V 5000–6000mAh 45C with EC5 connector
Ailerons: Yes
Rudder: Yes
Flaps: Yes
Retractable Landing Gear: Yes
Approx. Flight Time: 3 minutes
Recommended Age: 14+
Experience Level: Intermediate / Advanced
Assembly Time: 10 minutes
Wing Loading: 100 g/dm² (0.19 oz/in²)
Wing Area: 32 dm² (495.8 in²)

What's in the Box:

90mm Avanti RC Jet (PNP version)
3670-KV1950 Motor (pre-installed)
120A ESC (pre-installed)
8× 13g Metal Digital Servos (pre-installed)

Needed to Complete:

6-channel transmitter and receiver
22.2V 5000–6000mAh 45C LiPo battery with EC5 connector
LiPo battery charger
