Code:AJ0005R
Barcode:8596450068896
Brand:AJ Aircraft

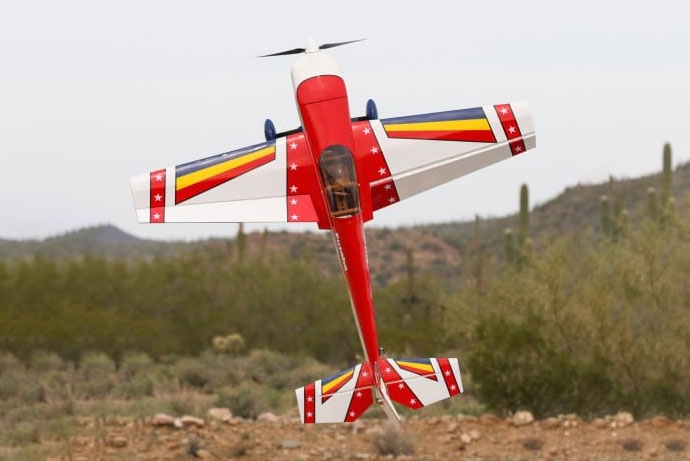

73" Laser 230z ARF - Red 1,85m

ARTF semiscale kit of 3D aerobatic aeroplane (1,854 mm wingspan) for 35-40ccm petrol engine or at least 2500W brushless motor with 8S LiPo. Extremely light, Kevlar®/carbon composite reinforced balsa/plywood airframe, lots of carbon parts.
This item is not available in you region (United States)
Description
Download

A semi scale model of the American aerobatic aeroplane for 30-40ccm petrol engine or 2.5-3.5 kW brushless electric motor for experienced pilots capable of the classic pattern as well as extreme 3D style.

The fuselage is of - now classic - ultra light design featuring balsa and plywood Kevlar®/carbon composite reinforced parts, detachable fibreglass cowl and large fuselage/canopy hatch allowing perfect access to the entire power system and RC gear. The engine or motor is to be fitted to a plywood/composite reinforced box using a radial mount.

The two-piece all-balsa wing with a symmetrical airfoil uses a carbon tube joiner; the wing halves are secured with screws to the fuselage. The large ailerons are controlled by a single servo each. You can install the supplied SFG winglets to the wing tips.

The empennage is a light all-balsa work; the horizontal tailplane is a single-piece, glued into the fuselage. The elevator halves are controlled by 2 servos installed in the tail part of the fuselage. The rudder could be controlled either by a servo installed in the cockpit with a closed-loop linkage, or by a servo installed in the tail part of the fuselage.

The entire model is covered by the ULTRACOTE® iron-on film (ULTRACOTE® is the trade mark for the ORACOVER® film used in the USA.)

The main undercarriage features carbon composite legs, fibreglass spats and lightweight wheels; the tail wheel with a carbon bracket is coupled with the rudder.

You will need a reliable 30-40 ccm petrol engine or at least 2.5 kW brushless electric motor, at least 100 A ESC and 40C 4,000-5,000 mAh 8S LiPo pack.

You will need at least 6-channel RC set to control your Laser Z230 - the precise set-up of servos, optimized dual and exponential rates is the must for aerobatic flying - the pattern as well as extreme 3D.

You will need 4-5 fast and strong standard size digital servos, like Hitec HS-7955TG, D954SW.

The ARTF kit contents: Oracover® covered fuselage, wing and tailplane, painted fibreglass cowl, carbon undercarriage, tail wheel assembly, wheels, set of accessories and instruction manual.

Wing span [mm]1854
Length [mm]1778
Weight [g]4500 - 5000
Controlled functionsS,V(2),K(2),M
Build difficultyS2
Operating difficultyP4

Download

User Manual 13.09.2023
