Code:AJ0007R
Brand:AJ Aircraft

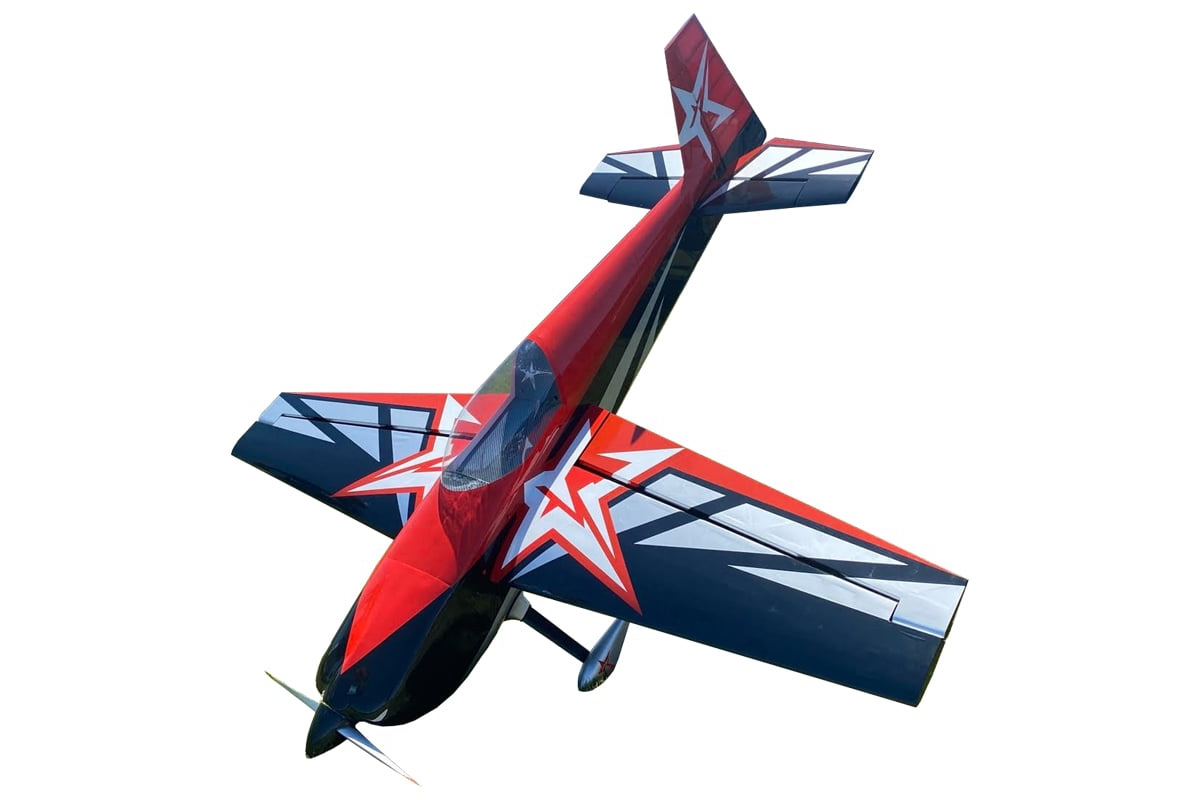

61" Slick 540 ARF red

ARTF semiscale kit of 3D aerobatic aeroplane (1,550 mm wingspan) for 1,400-1,600W brushless motor with 5-6S LiPo. Extremely light, Kevlar®/carbon composite reinforced balsa/plywood airframe, lots of carbon parts.
This item is not available in you region (United States)
Description

A semi scale model of the South African aerobatic aeroplane for 1,400-1,600 W brushless electric motor for experienced pilots capable of the classic pattern as well as extreme 3D style.

The fuselage is of - now classic - ultra light design featuring balsa and plywood Kevlar®/carbon composite reinforced parts, detachable fibreglass cowl and large fuselage/canopy hatch allowing perfect access to the entire power system and RC gear. The engine or motor is to be fitted to a plywood/composite reinforced box using a radial mount.

The two-piece all-balsa wing with a symmetrical airfoil uses a carbon tube joiner; the wing halves are secured with screws to the fuselage. The large ailerons are controlled by a single servo each. You can install the supplied SFG winglets to the wing tips.

The empennage is a light all-balsa work; the horizontal tailplane is a single-piece, glued into the fuselage. The elevator and rudder are controlled by  servos installed in the tail part of the fuselage.

The entire model is covered by the ULTRACOTE® iron-on film (ULTRACOTE® is the trade mark for the ORACOVER® film used in the USA.)

The main undercarriage features carbon composite legs, fibreglass spats and lightweight wheels; the tail wheel with a carbon bracket is coupled with the rudder.

You will need 1,200-1,1600 W brushless electric motor (e.g. KAVAN PRO 5050-515), 80-100 A ESC and 40C 3,300-4,000 mAh 6S LiPo pack.

You will need at least 4-channel RC set to control your Slick 540 but 6-channel computer radio i preferred - the precise set-up of servos, optimized dual and exponential rates is the must for aerobatic flying - the pattern as well as extreme 3D.

You will need 4 fast and strong digital mini servos, like KAVAN GO-1035MG.

The ARTF kit contents: Oracover® covered fuselage, wing and tailplane, painted fibreglass cowl, carbon undercarriage, tail wheel assembly, wheels, set of accessories and instruction manual.

Wing span [mm]1550
Length [mm]1430
Wing surface [dm2]48.1
Weight [g]2680 - 2750
Controlled functionsS,V(2),K(2),M
Build difficultyS2
Operating difficultyP3,P4
